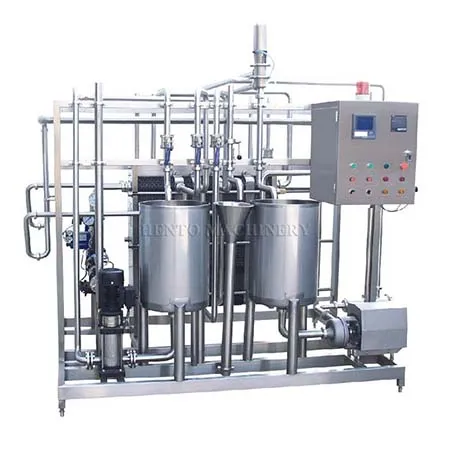

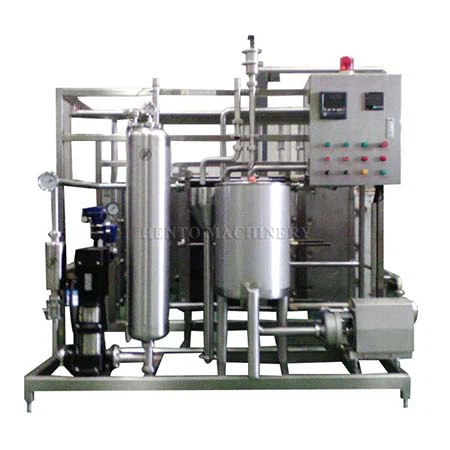

Fruit Juice Pasteurizer

Fruit Juice Pasteurizer used in food and beverage industries should also be disinfected before use, and then be fed with materials. When feeding materials and media, the low pressure side fluid valve should be opened slowly, and then the other side fluid should be fed. When opening the valve, it is not allowed to suddenly open the large flow to prevent the plate from being impacted by the large volume of fluid, resulting in plate leakage. The equipment should be used within the specified pressure and range, and operate at excessive temperature, otherwise it will damage the sealing performance of the equipment and cause leakage.

The installation of the complete set of Fruit Juice Pasteurizer shall ensure the convenience of connection, operation and maintenance of all pipes. During installation, all pipes and components shall be correctly installed and connected according to the requirements of the drawing. Seals shall be placed at the pipe joints to prevent leakage. Before equipment installation, the power line shall be buried in advance. The installation of control line components and wires shall avoid steam and hot water pipelines to prevent the heating surface of the wire from affecting the normal operation of the equipment. The installation distance between the instrument box and the main machine should not be greater than the transmission line length of the temperature measuring element. The hot water inlet and outlet pipes and cooling water pipes of the equipment should be configured by the user.

Tubular series tubular heat exchangers are suitable for heating or cooling stainless steel non-corrosive liquids. Heat exchangers with insulating tubes and intermediate material tubes can be heated, insulated, heat recovered and cooled simultaneously in the same sterilization equipment according to the user's process requirements. The complete set of equipment can also automatically control and record the sterilization temperature of materials, and automatically return unqualified materials. For the complete set of tubular heat exchange device, the heat exchange pipe of its main component is corrugated pipe with high heat transfer coefficient. The combination of double-end quick assembly brings great convenience to maintenance.
