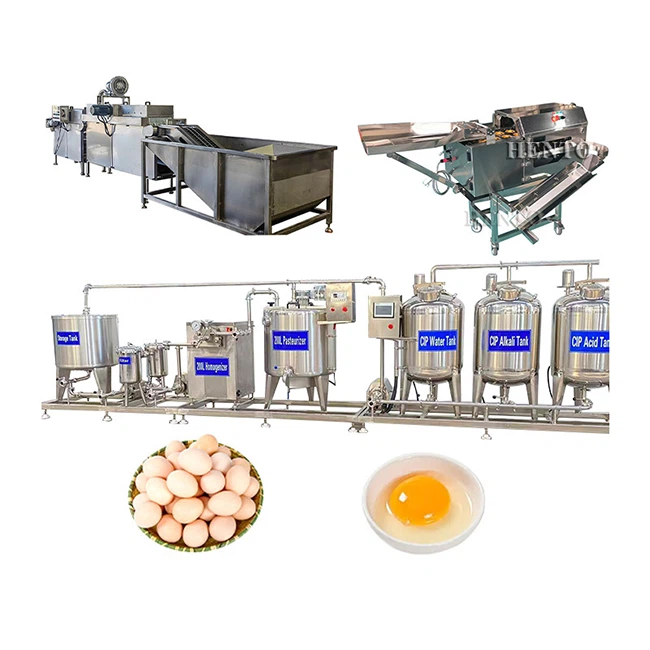

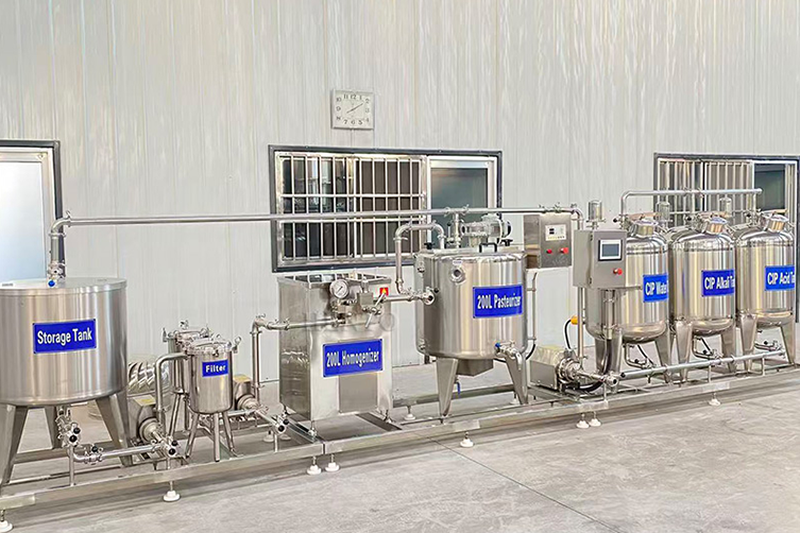

Egg Liquid Processing Line
machine Introduction
To meet the market's demand for a variety of high-quality egg products, we have launched this fully 304 stainless steel multifunctional egg liquid processing line. The entire line, from design to manufacturing, is centered around "food grade safety, high flexibility, and high efficiency", improving the efficiency and quality of egg liquid. preparation.
Core material: Full line 304 stainless steel
All parts of the egg liquid processing line that come into contact with materials are made of high-quality 304 stainless steel. This material has excellent corrosion resistance and oxidation resistance, a smooth surface and a design without dead corners, effectively preventing bacterial growth, ensuring long-term stable operation of the production line, and meeting strict food safety certification requirements at home and abroad.
Covering the entire process of processing various egg products

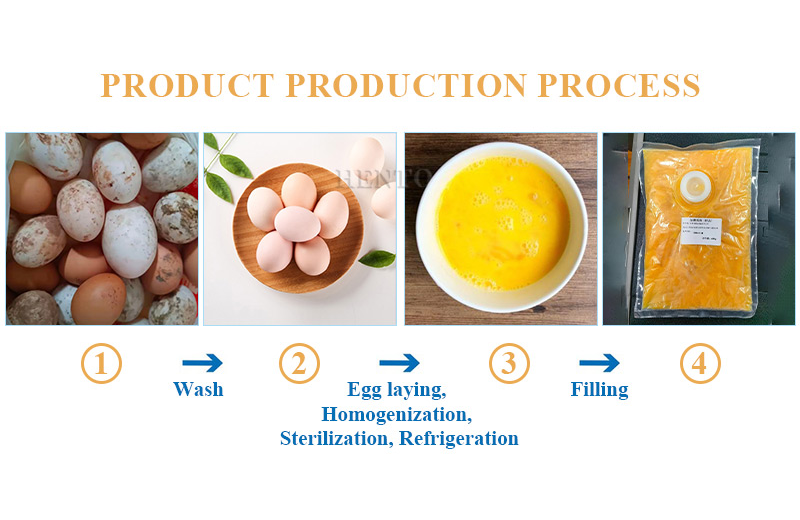

This egg liquid processing line has highly integrated functions and can flexibly process egg products such as eggs and duck eggs, covering three core links from raw materials to finished products:
Pre processing module
Integrates functions such as cleaning, air drying, egg beating, and separation of eggshell and egg liquid. Ensure that the eggshell is clean and the egg white and yolk are completely separated.
Sterilization module
Equipped with a precise pasteurization system, it can intelligently regulate temperature and time according to the coagulation characteristics of different egg liquids (whole egg liquid, yolk liquid, protein liquid). While effectively killing pathogenic bacteria, it maximizes the preservation of the functional characteristics and nutritional value of egg mixture.
Filling module
The backend integrates a fully automatic sterile filling system, supporting packaging forms in different sizes of bags. High filling accuracy, fast speed, reliable sealing, and prevention of secondary pollution.
Automatic cleaning
Supports CIP function, one click start, automatically completes pipeline and container cleaning, greatly reducing the labor intensity of manual disassembly and cleaning.
Higher efficiency: continuous high-speed production.
comparison of product parameters
| Model | HT-DYX200L | ||
| Capacity | 200L/h | ||
|
Machine Name |
Machine Model |
Technical Specification |
Quantity |
|

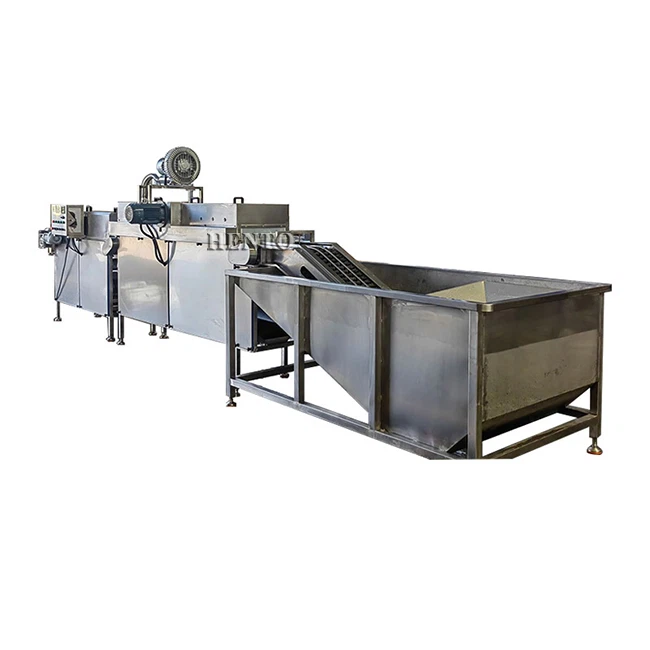

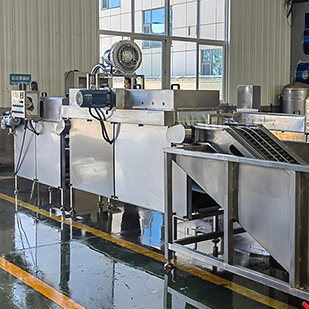

Egg Washing Machine |
HT-JQ1R Single Row |
Material:SUS304 Voltage:380V Total Power:2kw Capacity:5000-7000pcs/h Water tank size:2300*1200*1050mm Cleaning section size: 2400*650*1500mm Optical inspection size: 950*650*950mm Conveyor speed:variable frequency adjustable Number of brushes: 4 pcs Overall Dimensions: 5650*1200*1500mm Weight:550kg |
1 |
|
Egg Breaking Machine |
HT-EB5.4k Double Rows |
Capacity：5400pcs/h Voltage:AC220-1PH,50/60Hz Power:0.7KW Air Pressure:0.6MPA Weight:140kg Dimension:1750*1150*880mm Weight:120kg |
1 |
|
Collect Mixing Tanks |
HT-CM100 100L |
Material:SUS304
Plate Thickness:2mm
Volume:≤100L |
1 |
|
Pipeline Filter |
1T/H |
Filtering capacity: 1t/h Applicable temperature: ≤ 120 ℃ Filter aperture: 200 mesh Work pressure: ≤ 0.2MPa Filter material: 304 stainless steel Filtering accuracy: 200 (mesh/in) |
1 |
|

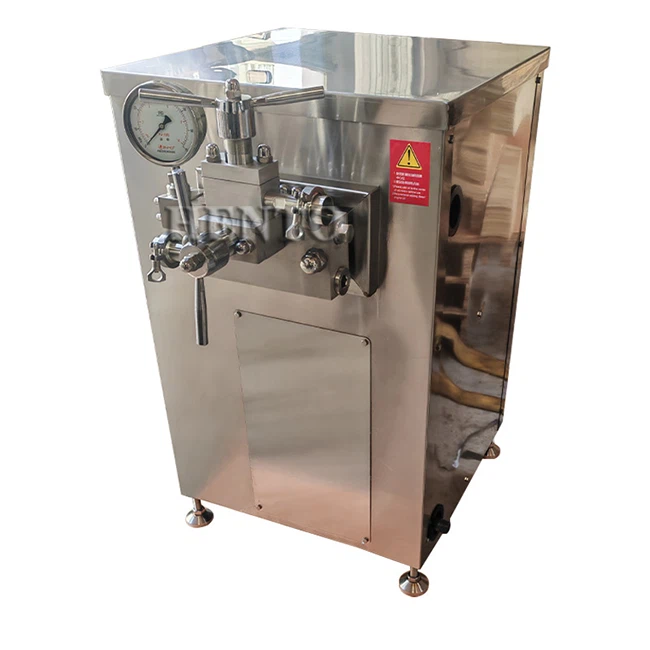

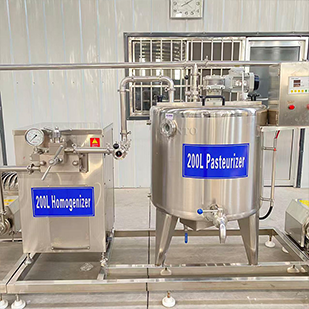

Homogenizer |
HT-GJJ0.3/25 300L |
Material: SUS304 Power supply: 380v 50Hz Motor power: 3kw Maximum pressure: 25Mpa Work pressure: 20mpa Production capacity: 300L/H Dimensions: 755*520*935mm Weight:300kg |
1 |
|
Pasteurization Tank |
HT-SG200 200L |
Material: SUS304 Voltage: 380v 50Hz Heating power: 9 kw Installation size: 1100*800*1400mm Mixing motor: 0.37kw Mixing speed: 36r/min Weight:180kg Material inlet and outlet diameter: Φ 38mm Configuration: Three layer structure, insulation layer, water level mirror, computer version control, adjustable foot, temperature adjustable |
1 |
|
Cooling Tank |
HT-ZL200 200L |
Material: SUS304 Power supply: 380v/50Hz Total power: 3kw Cooling capacity: 6000 kcal/hour Installation size: 1500*1100*1350mm Weight:270kg Unit manufacturer: American Grain Wheel Refrigerant medium: R22 Thermal insulation performance: ≤ 1 ℃/3H Compressor power: 3P Motor power/quantity: 0.37kw Insulation material/thickness: polyurethane foam/50mm Material inlet and outlet diameter: φ 38mm |
1 |
|
Pump |
1T/H |
Voltage: 380V/three-phase/50Hz Flow Rate: 1T/H Material import and export: φ 38mm Power: 0.37kw |
3 |
|
Pipeline Circulation System |
Φ38mm |
Equipment base stainless steel pipe Stainless steel elbow, three direct links Stainless steel connecting clamps and gaskets Stainless steel manual quick installation clamp butterfly valve Waiting for connecting accessories |
1 |
|

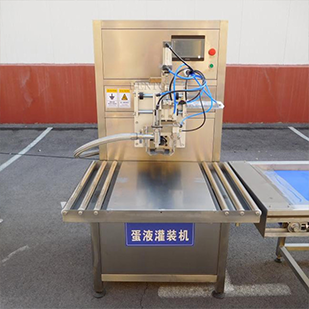

Egg Liquid Packing Machine |
HT-DYG5 Bags Packing Machine |
Filling capacity: 20kg Filling accuracy: ≤± 0.5% Capacity: 80-120bags/hour (20000ml) Power: 0.75kw Voltage: 380v/50hz Air Pressure: 0.3-0.5MP Machine Size: 900*850*1700mm Weight: 85kg |
1 |
|

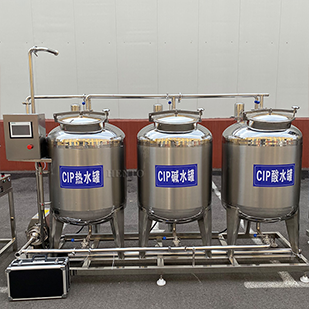

CIP Circulation / Cleaning System |
HT-CIP300 300L |
Water tank: 300L Alkali tank: 300L Acid tank: 300L Voltage: 380V Heating power: 12kw*3=36kw Cleaning pump flow rate: 10t/h Cleaning pump power: 2.2kw Dimensions: 2900*900*2100mm |
1 |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
