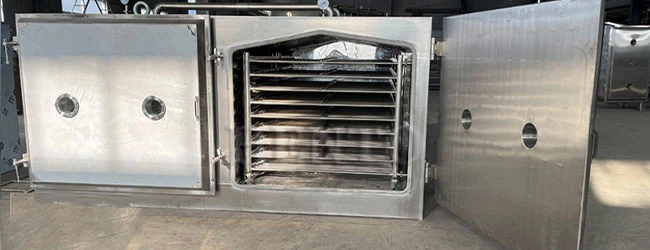

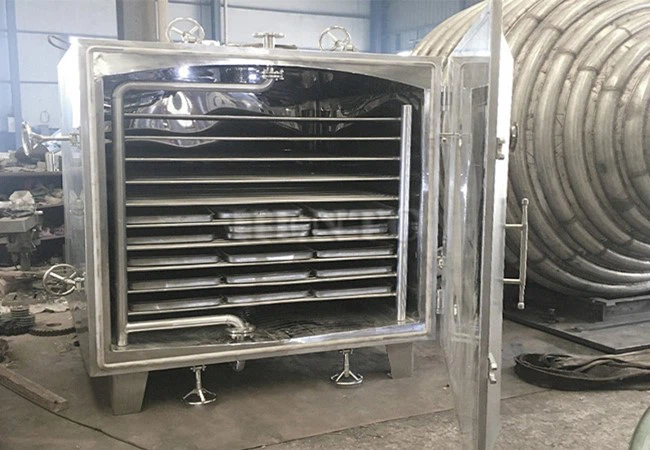

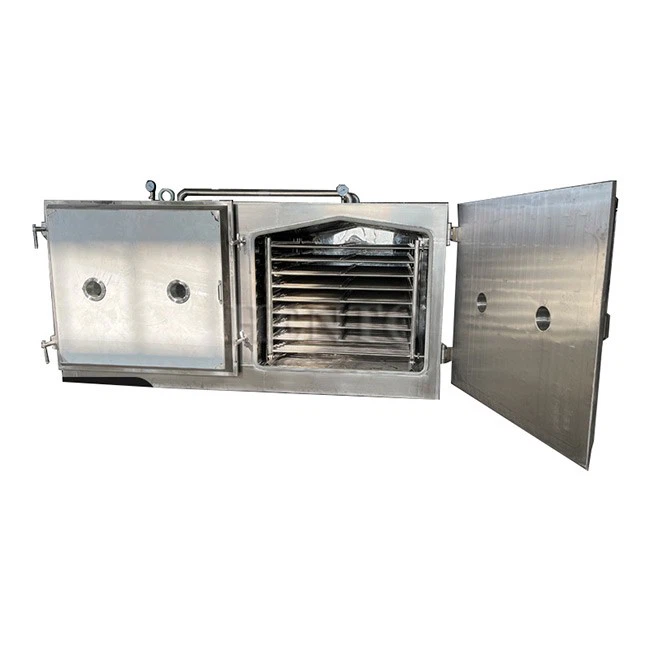

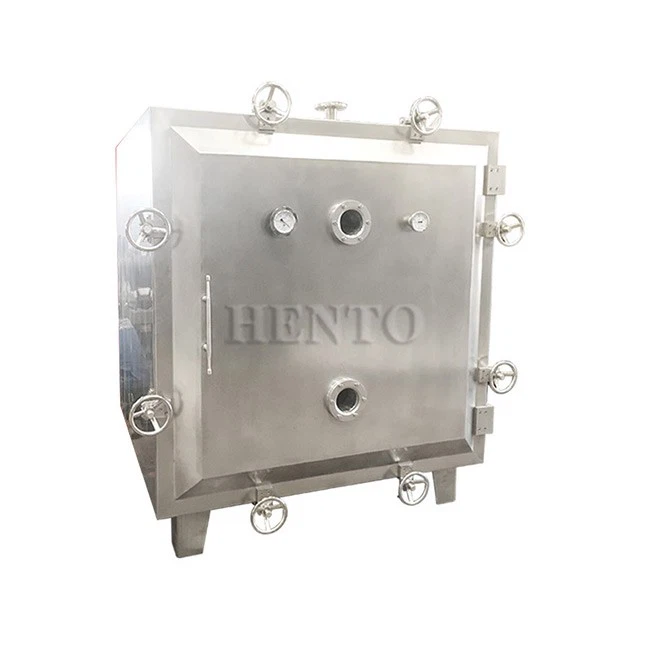

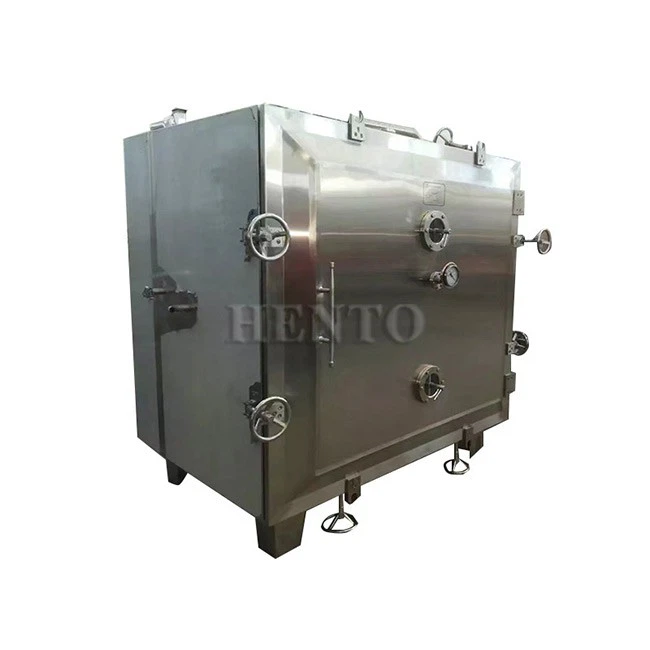

Square Vacuum Dryer

Square Vacuum Dryer

The Square Vacuum Dryer is a versatile machine used for drying and mixing various materials under vacuum conditions. It can achieve uniform and gentle drying without damaging the material's structure, making it ideal for pharmaceutical, chemical, food, and other industries.

Send Inquiry

Product Introduction

Application of Square Vacuum Dryer

Dryer finds its application in various industries, including pharmaceuticals, chemical processing, food processing, and many others. It is suitable for drying different types of materials, including powders, granules, and slurries. Some of the common materials that can be dried using this equipment are：

Pharmaceuticals:

Dryer is widely used in the pharmaceutical industry to dry different types of drugs, including antibiotics, herbal medicines, and chemical drugs.

Chemical Processing:

It is used for the drying of chemicals such as catalysts, polymers, pigments, dyes, and other specialty chemicals.

Food Processing:

Dryer is used in the food industry to dry food products such as fruits, vegetables, and grains. It prevents the growth of microorganisms.

Other Industries:

It is used in other industries such as ceramics, building materials, and electronics to dry different types of materials.

product parameters

Model	HT-FZG4	HT-FZG8
Inner size(mm)	7507501160	91510001230
Outer size(mm)	10509501700	145012001750
Drying tray size(mm)	460×640×45	460×640×45
Drying layer	8 layers	8 layers
Drying layer gap(mm)	120mm	120mm
Drying tray	8	16
Heating power (kw)	6	9

Model	HT-FZG10	HT-FZG15
Inner size(mm)	91514601230	122013801230
Outer size(mm)	145016601750	175015801750
Drying tray size(mm)	460×640×45	460×640×45
Drying layer	8 layers	8 layers
drying layer gap(mm)	120mm	120mm
Drying tray	24	32
Heating power (kw)	12	15

Model	HT-FZG20	HT-FZG25
Inner size(mm)	155015001230	155015001470
Outer size(mm)	200017001750	200017002000
Drying tray size(mm)	460×640×45	460×640×45
Drying layer	8 layers	10 layers
Drying layer gap(mm)	120mm	120mm
Drying tray	48	60
Heating power (kw)	21	27

Working Principle

Dryer operates based on the principle of vacuum drying. It consists of a heating jacket, a vacuum chamber, and a mixing chamber. The product to be dried is loaded into the mixing chamber and heated using steam or hot water from the heating jacket. As the temperature rises, the water or solvent from the product evaporates, and the vacuum removes it from the dryer. This process continues until the product reaches the desired moisture level.

Dryer is an essential equipment in various industries for the drying of different types of materials. Its advantages over traditional drying methods, such as higher efficiency, faster drying, and preservation of the product's quality,
