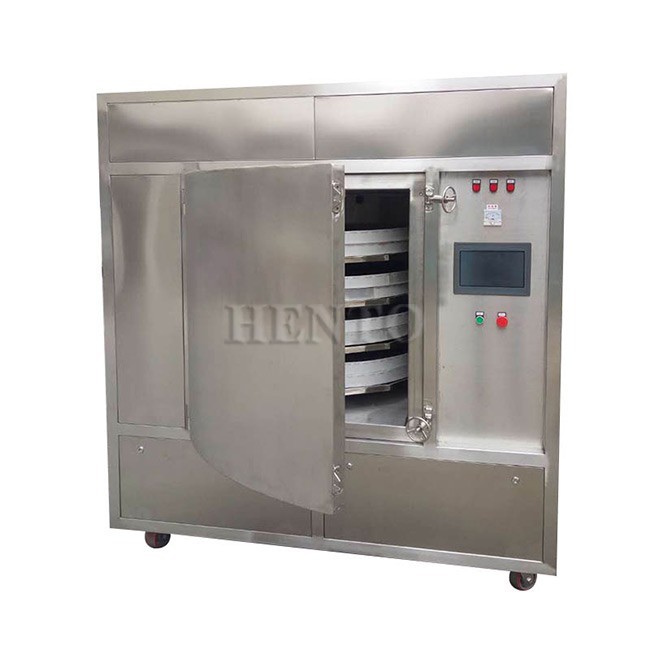

Vacuum Microwave Drying Equipment

The Vacuum Microwave Drying Equipment is designed for drying various materials using the combination of vacuum and microwave technology. it is suitable for drying food, herbs, pharmaceutical products, and other materials . Its advanced features make it an ideal choice for industries looking for cost-effective and environmentally-friendly solutions.
Send Inquiry
Product Introduction

Vacuum Microwave Drying Equipment is a modern and advanced technology-driven machine, designed to efficiently dry a wide range of materials using a combination of radio-frequency heating and vacuum pressure. The machine is widely used in industries such as food, pharmaceuticals, biochemistry, and chemicals, where precise and controlled drying of materials is necessary.



Advantages of Vacuum Microwave Drying Equipment



Its ability to dry products quickly and uniformly, without altering their composition or quality. The machine operates using a high-frequency electromagnetic field that heats the materials uniformly, leading to rapid evaporation of moisture from the products. The combination of vacuum pressure and microwave technology helps to reduce the boiling point of the material being dried, increasing the drying efficiency significantly.



Vacuum Microwave Drying Equipment is also an energy-efficient machine, owing to its ability to quickly and uniformly dry products. This, in turn, cuts down the time required for drying, resulting in lower energy consumption and higher productivity. The machine is also equipped with an automatic control system that ensures the drying process is optimized, resulting in high-quality products.

The machine can be used to dry a wide range of products, including powders, granules, liquids, and pastes. This makes it an ideal choice for industries with diverse product lines. The machine is also easy to use and maintain, owing to its modular design and high-quality components.



Equipment is a reliable, efficient, and cost-effective option for drying various materials. The machine's ability to dry products quickly and uniformly, while maintaining their composition and quality, makes it an indispensable tool for many industries. With its energy-efficient, versatile, and user-friendly features.



Model

HT-WZ2.0

HT-WZ3.0

HT-WZ4.0

Dehydration capacity

1.5kg/h

3kg/h

4kg/h

Microwave Power

2KW

3KW

4KW

Regular Voltage

380V/50HZ/3PHASE

220V/380V

220V/380V

Dimension(mm)

1000*1000*1400

1000*900*1200

1200*1000*1500

Cavity Size(mm)

Φ500*500

Φ750*500

Φ600*800

Vacuum pressure

0.08-0.1Mpa

0.08-0.1Mpa

0.08-0.1Mpa

Microwave Frequency

2450MHZ±50HZ

2450MHZ±50HZ

2450MHZ±50HZ



Model

HT-WZ10

HT-WZ12

Dehydration capacity

10kg/h

12kg/h

Microwave Power

10KW

12KW

Regular Voltage

380V/50HZ/3PHASE

220V/380V

Dimension(mm)

1400×1100×1600

1800*1500*1900

Cavity Size(mm)

700×650mm

Φ1200*1200

Vacuum pressure

0.08-0.1Mpa

0.08-0.1Mpa

Microwave Frequency

2450MHZ±50HZ

2450MHZ±50HZ



Model

HT-WZ6.0

HT-WZ8.0

HT-WZ9.0

Dewaterability

6kg/h

6kg/h

9kg/h

Output Power

6KW

8KW

9KW

Voltage

220V/380V

380V/50HZ/3PHASE

220V/380V

Dimension(mm)

1450*1350*1650

1400*1100*1500

1350*1800*1600

Cavity Size(mm)

Φ800*1000

Φ700*550

700×650mm

Vacuum pressure

0.08-0.1Mpa

0.08-0.1Mpa

0.08-0.1Mpa

Microwave Frequency

2450MHZ±50HZ

2450MHZ±50HZ

2450MHZ±50HZ



industrial microwave vacuum dryer
microwave vacuum tray dryer
vacuum microwave food dryer



FAQ



Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.



Q: What about the package?

A: Usually we will use the standard export wooden case.



Q: Are you manufacturer or trading company?

A: We are professional manufacturer of this machine, and we have manufactured this machine for more than 10 years.



Hot Tags: vacuum microwave drying equipment, China vacuum microwave drying equipment manufacturers, suppliers, factory
