Chain Garlic Peeler

1. Chain Garlic Peeler adds peeling delay function and discharging delay function to further improve peeling effect
2. Stable performance, practicality, safety, easy maintenance and simple operation 3. High efficiency, compact structure and small floor area
4. No damage to garlic, garlic rice stored for a long time

Send Inquiry

Product Introduction

Product Introduction:

To meet the bigger garlic peeling capacity demand, Our company design and produce large-scale chain type garlic peeling machine. This chain garlic peeler can guarantee zero damage of garlic rice processing. and has good processing stability, high efficiency, easy cleaning and maintenance, and it is suitable for mass production.Products can be customized according to different production needs.

Features of Chain Garlic Peeler:

1.Chain Garlic Peeler uses pneumatic principle to peel garlic, which does not harm the garlic itself and can effectively extend the shelf life and reduce waste;

garlic separating machine garlic peeling machine garlic bulb breaker machine

2. Dry peeling reduces waste of water resources and effectively lowers environmental pollution;

3. Clean and smooth peeling, with a peeling rate of up to 98%;

4. Stable performance, practicality, safety, and easy operation and maintenance;

5. It is not limited by the size of garlic cloves and can be processed without sorting;

Contact now

Advantages of Chain Garlic Peeler

High degree of automation, one person can operate multiple devices simultaneously;

Chain Garlic Peeler work process does not require water and does not pollute the environment;

Garlic has a high removal rate and low damage rate;During the peeling process of garlic, it is not limited by the size of garlic cloves and can be processed without sorting;

Stable performance, practicality, safety, and easy operation and maintenance.

Working Principle of Chain Garlic Peeler:

Chain garlic peelers are designed with a series of rotating chains that rub against the garlic cloves, removing the skin in the process. They are made up of several components, including:

Hopper:

A hopper is a funnel-shaped container where you load garlic cloves into the machine.

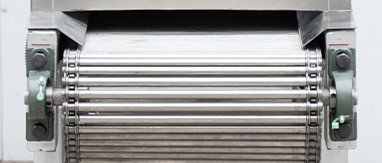

Chain System:

The chain system is a series of rotating chains that rotate at high speed, rubbing against the garlic cloves, removing the skin.

Control Panel:

The control panel is the command center, where you can adjust how the machine operates.

Discharge Chute:

The discharge chute is where the peeled garlic cloves exit the machine.

Technical Parameter

Model	HT-RYL400	HT-RYL600
Machine Size	16005001450mm	18006001520mm
Weight	260kg	340kg
Voltage	220/380v	220/380v
Power	1.05kw	1.05kw
Capacity	400kg/h	600kg/h
Air Consumption	2.8m³/min	5.8m³/min
Air compressor Power	22kw	37kw

Model	HT-RYL1000	HT-RYL2000
Machine Size	250010002000mm	300010002000mm
Weight	560kg	850kg
Voltage	380v	380v
Power	3kw	3.7kw
Capacity	1000kg/h	2000kg/h
Air Consumption	7.5m³/min	16m³/min
Air compressor Power	55kw	110kw

To summarize

The Chain Garlic Peeler is powered by compressed air and generates powerful cyclonic vortices through multi-point airflow injection to naturally peel garlic. It automatically completes the feeding, peeling, and discharging of garlic through electrical and pneumatic control.

The Chain Garlic Peeler operates continuously, is easy to operate, saves manpower, and has a large production volume; The material has a large contact area with hot air and can be flipped by itself during the drying process, which is beneficial for the uniformity of drying and improves the drying speed; The belt speed of the conveyor belt is controlled by a continuously variable transmission device, and the operating time can be adjusted; The materials are continuously dried in the same drying chamber, with a closed air device installed at the tail to avoid material contamination and meet hygiene requirements. Later, there is a cooling device to quickly cool down the dried materials;
