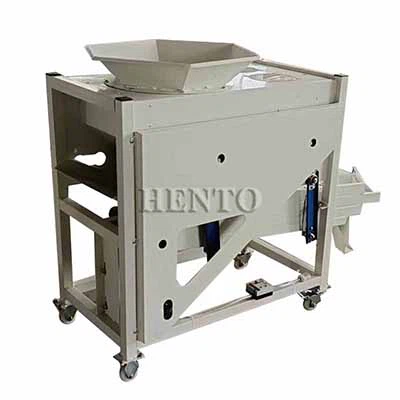

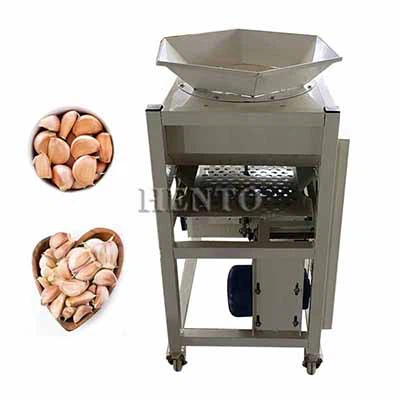

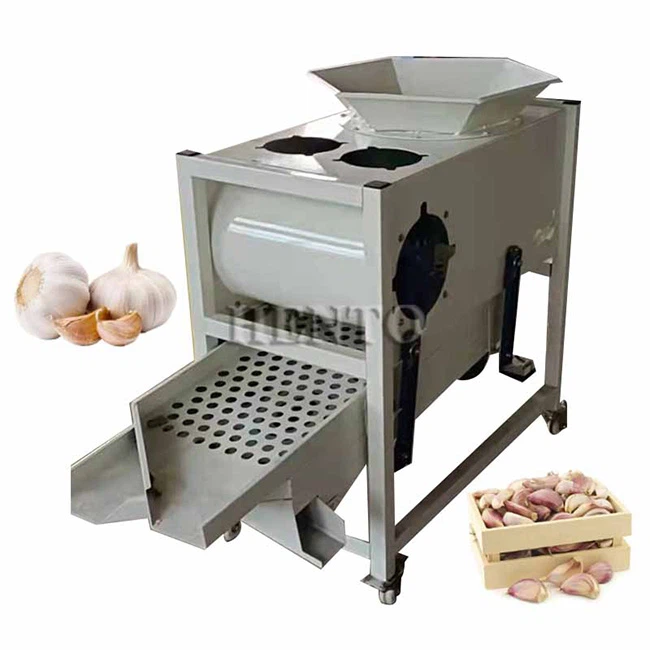

Garlic Seeds Splitting Grading Machine
Exquisite design, easy assembly, one person can operate the screen machine.
Large screening area, high processing capacity.
The mother net fully supports the fine mesh, so the fine mesh can have a long life, and reduce the use of fine mesh consumables, the production process can reduce a lot of costs.
The screen structure design is unique, convenient and fast replacement of the screen (only 3 to 5 minutes), in addition to this design allows the use of a variety of screens (nylon, special dragon, PP net).
Machine Introduction
Garlic sorting machine is a linear vibrating screen, the use of vibration motor excitation as the vibration source, so that the material is thrown up on the screen, while moving forward in a straight line, the material from the feeder evenly into the feed port of the screening machine, through the multi-layer screen to produce several specifications of the screen, the screen under the material, respectively from their respective exits. With low energy consumption, high output, simple structure, easy maintenance, completely closed structure, no dust overflow, automatic discharge, more suitable for assembly line operation.
Work Principle
The use of double vibration motor drive, when the two vibration motors do synchronous, reverse rotation, the eccentric block generated by the excitation force in the direction of parallel to the motor axis offset each other, in the direction perpendicular to the motor axis stacked as a force, so the motion trajectory of the screen machine is a straight line. The two motor shafts have an inclination Angle relative to the screen surface.
Under the combined force of the exciting force and the material's self-gravity, the material is thrown up on the screen surface for a straight line movement, so as to achieve the purpose of screening and grading the material. It can be used to automate operations in the pipeline. The maximum screening mesh number of the machine is 400 mesh, which can screen out 7 kinds of materials with different particle sizes.
product parameters
|
Model |
HT-FSH1000 |
|
Voltage |
220V |
|
Power |
3KW |
|
Size |
1400*650*1100mm |
|
Weight |
95kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
