Half Juice Extracting Machine
Product Introduction
The half juice extracting machine is suitable for cutting and juicing round fruits such as oranges, citrus, pomelos, and pomegranates. The applicable material diameter is Φ 50-90mm. Customizable processing materials with diameters ranging from 90 to 110mm. Blade made of 3cr13 stainless steel, blade holder made of nylon material, frame and other material contact parts made of 304 stainless steel;
The half juice extracting is mainly composed of a frame, concave convex ball rollers, feeding hopper, slag hopper, juice collection hopper, transmission components, etc.

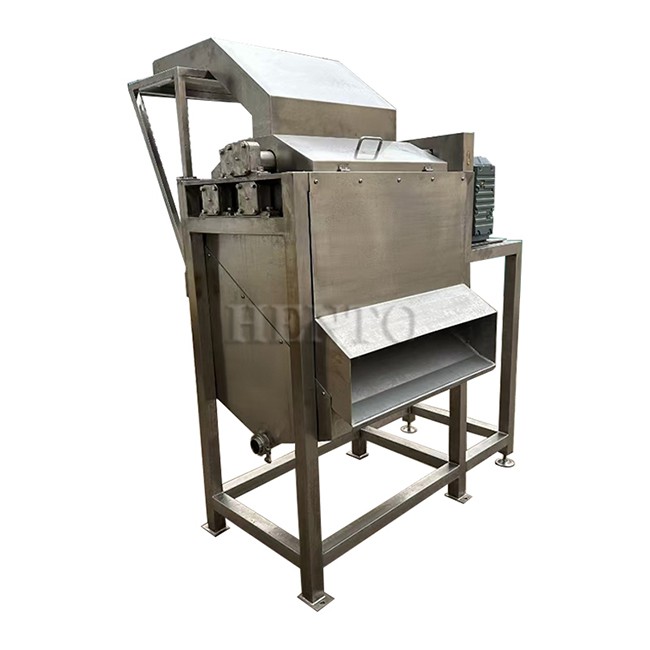

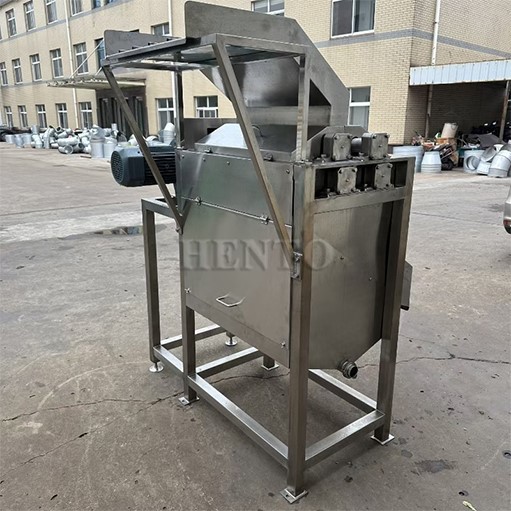

Machine pictures
Working Principle
During operation, the material is directly poured into the feeding hopper and manually fed into the sorting hole. The material entering the sorting hole falls into the concave ball roller, and the two concave ball rollers work together to press the material to the cutting blade for cutting in half. The cut material is then juiced by the two convex ball rollers. The juiced skin and juice are brought into the tank and separated by a filter screen to complete automatic cutting and juicing.
Machine Advantages
Efficiently Processing Fruits
The half juice extracting machine usually comes with an automatic slicing mechanism, which can automatically slice the fruits and send them into the juicing device, reducing the number of manual processing steps. For example, the roller press type juicing machine uses bevel gear transmission to automatically send the fruits onto the four-flower rotating disc, achieving rapid slicing and juicing.
Preserving Nutritional Components
Half juice extracting machine adopt low-speed squeezing technology to avoid high-temperature oxidation and nutrient loss. And it retains more vitamins and dietary fibers through low-speed squeezing, and the juice has a more natural taste.
Convenient Operation
The automated design simplifies the process. With just one button press, the slicing and juicing can be completed. It is suitable for families to quickly make juice. Some models support disassembly and cleaning, making maintenance convenient.
product parameters
|
Model |
HT-QBZ120 |
|
Voltage |
380v 50Hz |
|
Power |
2.2kw |
|
Capacity |
100-120pcs/min |
|
Applicable material diameter |
Φ50-90mm (φ90-110mm can be customized) |
|
Concave convex ball combination pressing |
5 sets |
|
Dimension |
1370*1157*1960mm |
|
Weight |
550kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
