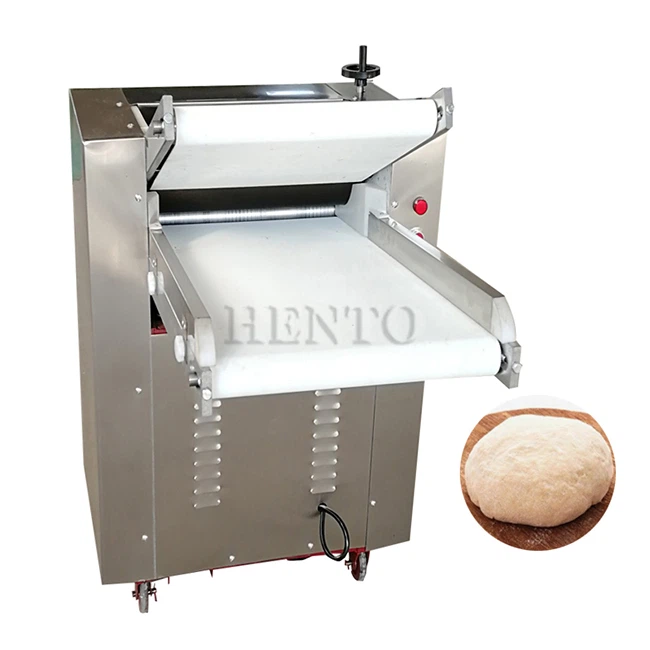

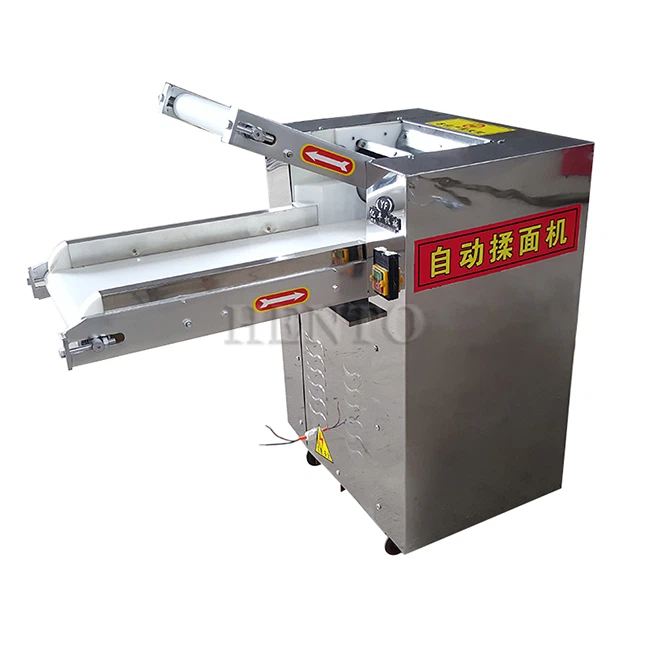

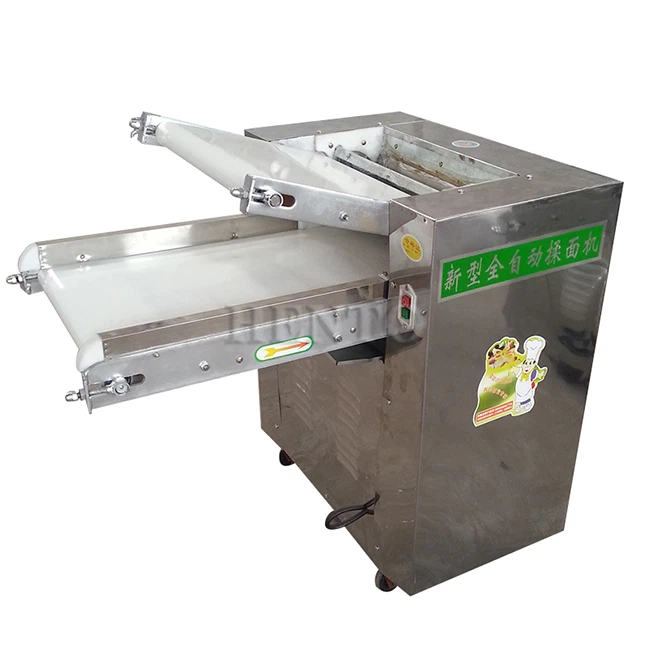

Automatic Dough Press Machine

Electric Dough Roller is one of the main noodle processing equipment, mainly used for kneading and pressing different kinds of soft or hard toughness dough for making dumpling wrapper,steamed bun wrapper ,steamed stuffing bun wrapper and others.The pressing thickness is 5-25mm, and the pressing width is less than 500mm
It is widely used in the unit dining room, restaurant, hotel, pasta processing unit and the household of individual business to process bread, strips, etc.
It is unique technology-Double Helix mechanism can finish conveying dough- folding dough sheet- kneading and pressing automatic and continuous .

Working principle:

Put the quantitative dough on down conveyor belt , start the machine, machine can finish conveying dough- folding dough sheet- kneading and pressing automatic and continuous.

How to use the Automatic Dough Press Machine

1, The installation of the machine requires a dry and stable site, with appropriate space left for easy operation. The external power supply should be installed by professional personnel, and the machine should be reliably grounded. The direction of rotation should be consistent with the machine logo. If the direction is opposite, it should be corrected immediately, and reverse rotation is strictly prohibited.
2, Before starting up, remove any foreign objects from the machine. Only when the machine is running properly can it be used. Before starting up every day, drip oil on the exposed sprocket chain for lubrication.

3, When the machine is running normally, rotate the dough on the conveyor belt to automatically transport, knead, and fold it.
4, Belt deviation can be adjusted by tightening the screws at the front end of the support plate appropriately
5, Tighten the chain every half month to prevent slipping.
6, When the machine is running, never allow hands or metal tools to come into contact with various transmission parts to prevent human-machine damage. When cleaning or repairing, the power must be cut off. The manufacturer is not responsible for losses or accidents caused by illegal operations.
