Electric Noodle Maker Machine
Product Description
The electric noodle maker machine is divided into two types: making fresh noodles and making dry noodles. The main difference is the conveyor belt after the noodles are made. The conveyor belt of the electric noodle maker machine for making fresh noodles can automatically sprinkle flour and one-time molding. The machine for making dry noodles has a conveyor belt that can automatically climb and cut.
This machine can customize cutting tools and produce various types of noodles. Efficient work, time-saving and labor-saving, simple operation, saving labor costs.
The front of this machine can be used in conjunction with a flour mixer for better noodle effects.
Compact structure, easy operation, and convenient maintenance.
Flexible operation, stable performance, and high production efficiency.
Processing Steps
1. First, pour the flour into the mixer and start the motor, then add an appropriate amount of water.
2. Pour the mixed flour into the hopper of the electric noodle maker machine.
3. The flour is extruded and formed by relative rotation of the flour roller.
4. Then use a noodle cutter to cut the pressed dough into strips, forming noodles.
5.Fresh noodle products has been finished. And when passing through the conveyor belt, automatically sprinkle flour to prevent noodle adhesion.

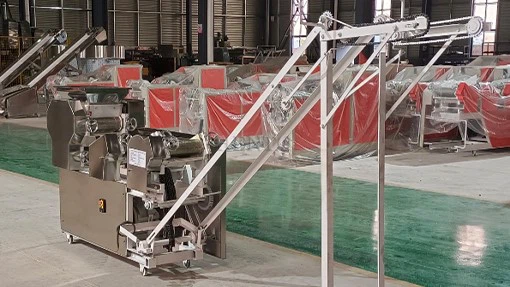

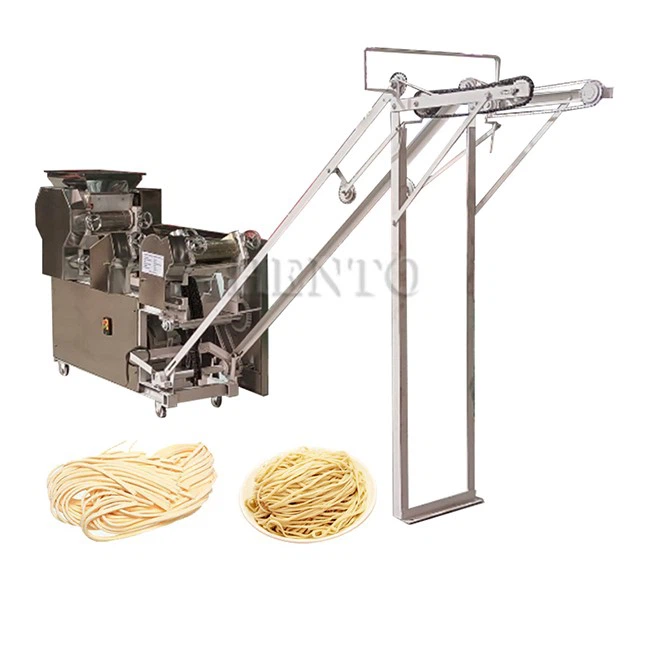

6.If you want to make dry noodles, the climbing conveyor belt will automatically hang and cut the noodles, and then they can be directly taken to dry.
Electric Noodles Maker Machine Knives Introduction
High quality noodle cutter knife with multiple sizes available for customization. The noodle cutter knife is made of special carbon steel material and processed with high precision.
The bearing is equipped with high-frequency quenching, which is not easy to rust. The cutting surface is free of burrs and durable, usually not damaged by human factors. The normal service life is 3-5 years.
Noodle cutter knives specifications: round cutter knives, square cutter knives, sliced Noodles cutter knives, diamond cutter knives, etc. There are also various types of noodles that can be made.
Comparison diagram of machine models
5 sets fresh noodle machines
6 sets fresh noodle machines
7 sets fresh noodle machines
5 sets dry noodle machines
6 sets dry noodle machines
7 sets dry noodle machines
comparison of product parameters
|
Model |
HT-MT5-250 |
HT-MT5-260 |
HT-MT5-300 |
|
Main shaft size |
Φ96-250mm |
Φ140-260mm |
Φ140-300mm |
|
Capacity |
150-170kg/h |
170-200kg/h |
200-230kg/h |
|
Power |
3kw |
3kw |
3kw |
|
Dimension |
1600*570*1225mm |
1800*580*1250mm |
1800*630*1370mm |
|
Weight |
380kg |
510kg |
580kg |
|
Model |
HT-MT6-250 |
HT-MT6-260 |
HT-MT6-300 |
HT-MT6-330 |
HT-MT6-360 |
|
Main shaft size |
Φ96-250mm |
Φ140-260mm |
Φ140-300mm |
Φ140-330mm |
Φ140-360mm |
|
Capacity |
180-210kg/h |
240-260kg/h |
240-280kg/h |
280-300kg/h |
260-330kg/h |
|
Power |
4kw |
4kw |
4kw |
4kw |
5.5kw |
|
Dimension |
2000*650*1250mm |
2300*600*1370mm |
2300*650*1370mm |
2300*633*1370mm |
2300*660*1370mm |
|
Weight |
520kg |
620kg |
820kg |
980kg |
960kg |
|
Model |
HT-MT7-300 |
HT-MT7-330 |
HT-MT7-360 |
|
Main shaft size |
Φ140-300mm |
Φ140-330mm |
Φ140-360mm |
|
Capacity |
260-300kg/h |
280-320kg/h |
300-360kg/h |
|
Power |
5.5kw |
5.5kw |
5.5kw |
|
Dimension |
3400*720*1350mm |
3000*680*1420mm |
3000*760*1500mm |
|
Weight |
1000kg |
1200kg |
1350kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: 11.What about Pre-sale service?
A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: 12.What about After-sales service?
A: Video technical support; Online support ; Field installation, commissioning and training;
