Sesame Seed Washing and Drying Machine



Sesame seed washing and drying machine is a highly advanced machine designed for cleaning and drying sesame seed in order to make it free from impurities, dust and other unwanted substances. This machine comes with a number of features which makes it highly efficient, powerful and durable.

Sesame Seed Washing and Drying Machine including Sesame cleaning and drain equipment, Sesame peeling machine, Sesame roasting machine.





Raw sesame → Cleaning → Soaking → Peeling → Peel separation → Roasting

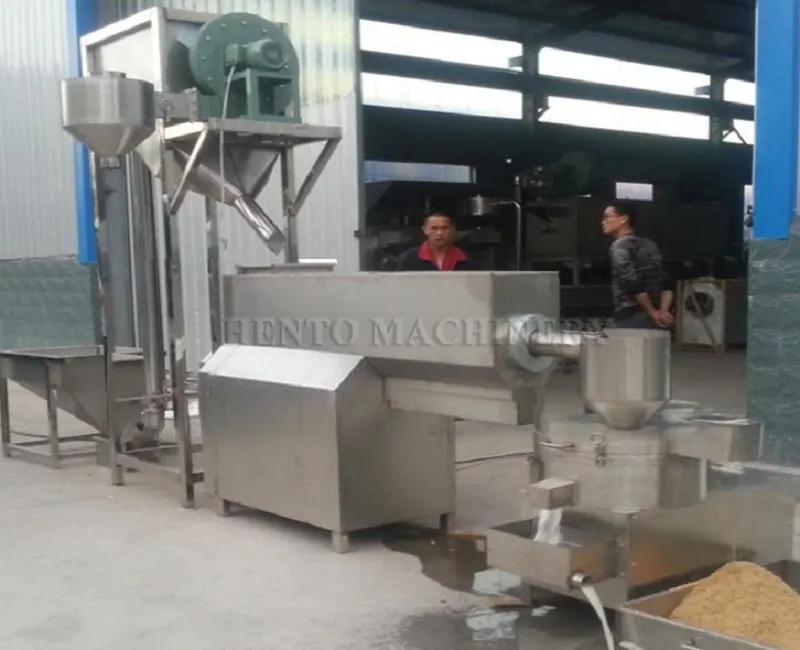

The pneumatic hoist supporting the equipment has the characteristics of low noise, no breakage and small floor space, and during the lifting process, the airflow will clean out some small broken fruit leaves. The sesame washing machine uses the lighter weight of sesame to remove the sand from the sesame by washing with water. The dryer uses the centrifugal force generated by the rotating cone to separate excess water generated in the washing machine. Compared with the previous water control, it saves time, reduces the water content in sesame, and saves the subsequent baking cost.

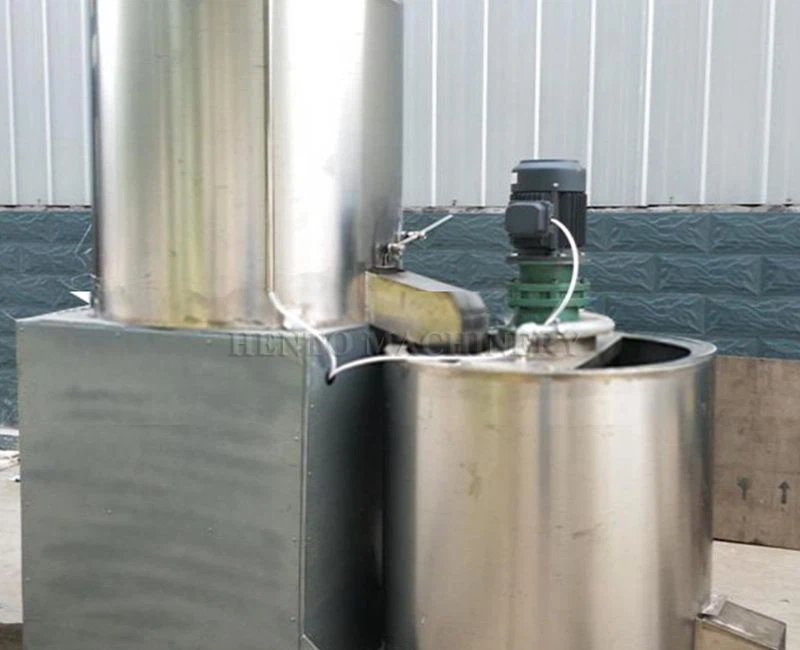

The sesame peeling machine is a vertical structure, the internal space can be fully utilized, the volume is small, the structure is simple, the appearance is beautiful, the operation is convenient, and the maintenance rate is low. A compound agitator is used, which can produce axial splitting, radial splitting and circumferential splitting; the material is fully turned and has no dead angle.





The machine is mainly used for drying and baking hot products such as sesame, peanut, broad bean, coffee bean, melon seeds, nuts, nuts, etc. It adopts the principle of rotary drum, heat conduction and heat radiation. It can be used as a heat source in various ways, and the baked product tastes pure. It has the advantages of energy saving, safety, convenience and easy operation.





Sesame cleaning and drain equipment:

Name	Pneumatic hoist	Sesame washing machine	Sesame drain machine
Model	HT-TS500	HT-QXJ500	HT-HGJ500
Production capacity	500kg/h	500kg/h	500kg/h
Power	0.75kw	0.75kw	1.5kw
Voltage	380V,50hz, 3 phase	380V,50hz, 3 phase	380V,50hz, 3 phase
Dimension	1500x550x2700mm	2050x500x1350	1000x800x900
Weight	200kg	160kg	150kg



Sesame peeling machine:

Model	HT-TPJ200	HT-TPJ500
Voltage	380V, 50hz, 3 phase	380V, 50hz, 3 phase
Power	3.7kw	9.5kw
Capacity	200-300kg/h	400-500kg/h
Dimension	1730x800x2500	2300x1100x3100
Weight	260kg	350kg

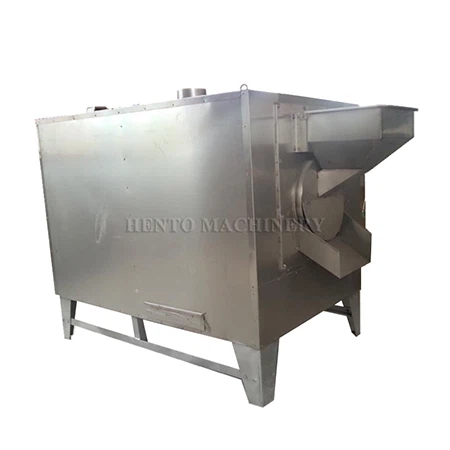

Sesame roasting machine：

Model	HT-HKJ100
Voltage	380V, 50hz, 3 phase
Power	22-30kw (2-3kg gas )
Capacity	100kg/h
Dimension	2900x1250x1650mm
Weight	650kg
