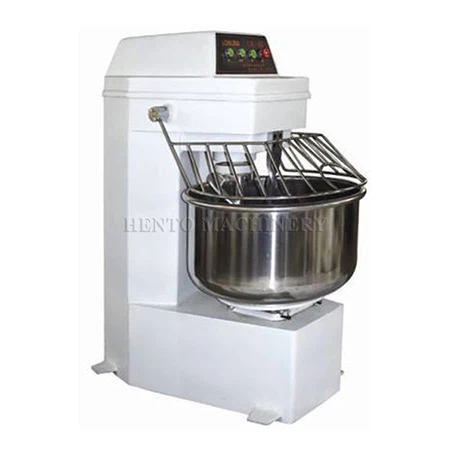

Spiral Dough Kneader
video

Spiral Dough Kneader

Spiral Dough Kneader adopts belt and chain transmission to change the speed, and the rod and mixing barrel rotates at the same time, which is mainly used in public canteens, hotels, hotels, restaurants, military units, guest houses and school departments.
Send Inquiry
Product Introduction
Product Introduction



Spiral dough kneader is an essential tool for commercial bakeries and widely used in the production of bread, cakes, pastries, and other bakery products.



Working Principle:



Spiral dough Kneader works by using a spiral hook to knead the dough. The dough is placed in the mixing bowl and the spiral hook is engaged to knead the dough. The spiral hook rotates around the bowl, mixing and kneading the dough. The motion of the hook ensures that the dough is mixed evenly and thoroughly.

The spiral hook of the mixer is designed to knead the dough gently while avoiding overheating. This helps to ensure that the dough develops the proper gluten structure and achieves the desired texture and flavor.



Features:



1. Spiral Dough Kneader is equipped with a convenient control panel, which is easy to operate and clear at a glance.

2. The machine adopts stainless steel barrel, thick stainless steel material, which is solid and durable.

3. Spiral dough mixer, which is evenly and without running powder. Improved advanced new type of spiral kneading machine, low speed/high speed selection and direct speed change, meeting the needs of kneading, it is easy to use.

4. The safety diamond cover is equipped with overload and phase loss protection devices and a safety linkage device for the protective cover.



Technical Parameter



Model

HT-HM20

HT-HM30

HT-HM40

HT-HM50

Capacity

10kg/h

15kg/h

25kg/h

32kg/h

Power

0.75/1.1kw

1.1/1.6kw

1.1/2.2kw

1.1/2.2kw

Voltage

220V/50Hz

220V/50Hz

380V/50Hz

380V/50Hz

Dimension

690*380*730mm

730*430*770mm

900*500*960mm

950*530*970mm

Weight

70kg

90kg

128kg

135kg



Model

HT-HM60

HT-HM80

HT-HM100

HT-HM120

Capacity

40kg/h

50kg/h

65kg/h

75kg/h

Power

1.5/2.4kw

2.2/3.3kw

3/4.5kw

3/4.5kw

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

Dimension

(mm)

980*560*1060

1050*600*1150

1160*700*1340

1200*690*1330

Weight

185kg

240kg

470kg

300kg



Model

HT-HM130

HT-HM200

HT-HM260

Capacity

85kg/h

100kg/h

120kg/h

Power

2.8/5.6kw

4/9kw

5/7.5kw

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Dimension

(mm)

1250*830*1450

1400*970*1580

1450*1000*1650

Weight

570kg

675kg

735kg



Product Pictures

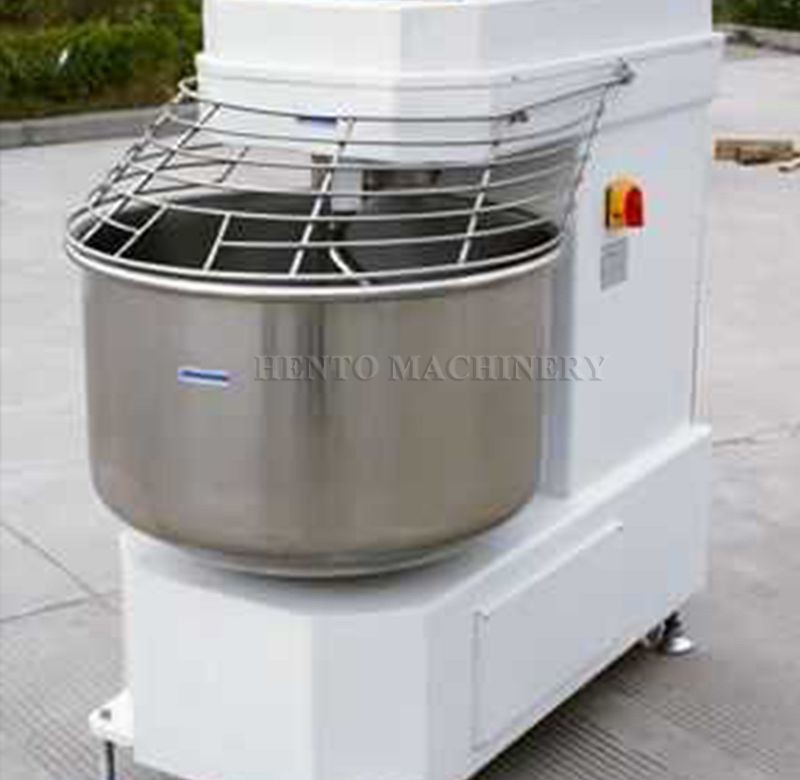

Dough Maker001
Dough Mixer001
