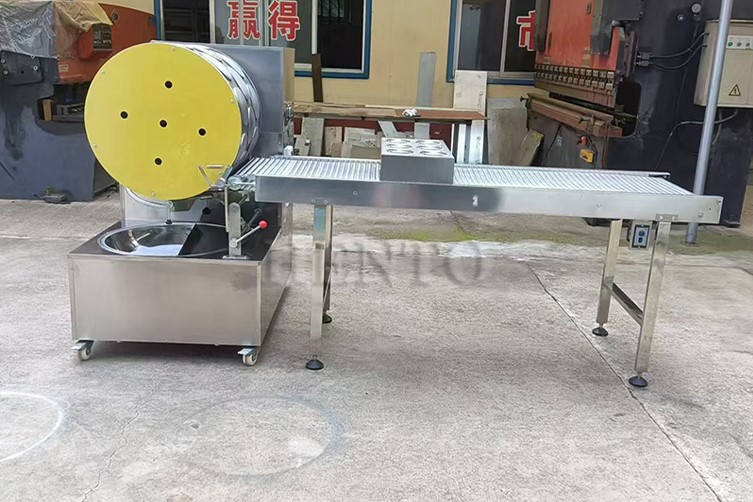

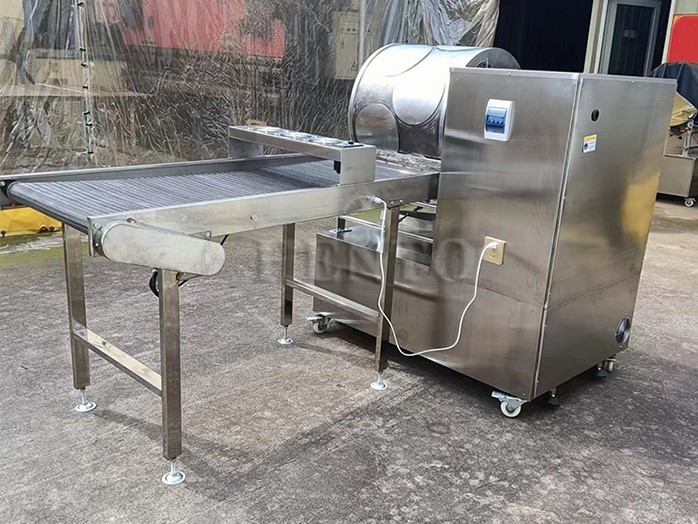

Spring Roll Pastry Making Machine
2. One-time molding, no waste products.
3. Digital temperature control system, real-time temperature monitoring without waste.
Product Description
The spring roll pastry making machine is an automated equipment specifically designed for making spring roll wrappers. It can replace the traditional manual rolling process, increase production efficiency, and ensure the uniformity and consistency of the spring roll wrappers. It is widely used in food processing plants, catering enterprises, central kitchens, and family workshops, etc.
Machine Features
1.Pastry sheet machine may manufacture thickness 0.2-2 millimeter spring roll skin, the curry cutie, the egg skin and the crepes, and may manufacture other laminated, food, suits in the food products factory, the hotel, the fast food restaurant and so on.
2.The Stainless Steel spring roll crepe machine is made of Stainless Steel
3.Spring roll crepe machine uses flour as material, you also can add some spice to make spring roll sheet. Operation is very easy and has high capacity!
4.Spring roll crepe machine can make round or rectangular (need Cutting Part) spring roll sheet. We can make new machines according to your sheet diameter.
Main Structure and Working Principle
Component and Function
Dough Transport System: Stores and transports the prepared dough.
Heating System: Utilizes electric heating or gas heating to bring the baking tray to the appropriate temperature.
Forming Device: Uniformly spreads the dough into a thin round sheet through rotation or flattening.
Peeling Mechanism: Automatically or manually removes the cooked spring roll sheets from the baking tray.
Control System: Adjusts parameters such as temperature, speed, and thickness.
Working Principle
Dough is poured in → Uniformly coated on the heating tray through a conveyor belt or funnel.
Heating and Forming → High temperature causes the dough to quickly mature, forming a thin and tough spring roll sheet.
Automatic Peeling → The formed spring roll sheets are lifted and collected (some models require manual assistance).
comparison of product parameters
|
Model |
HT-SR28-38 |
HT-SD28-38 |
|
Heating method |
Gas |
Electric |
|
Diameter of spring roll |
＜22cm Single Row ＜12cm Double row (Customized) |
＜22cm Single Row ＜12cm Double row (Customized) |
|
Shape |
Circular or Square |
Circular or Square |
|
Power |
0.37-0.43KW |
8KW |
|
Voltage |
220V |
220V/380V |
|
Dimension |
1250*720*1300mm |
1250*720*1300mm |
|
Weight |
230kg |
230kg |
|
Model |
HT-SR38-39 |
HT-SD38-39 |
|
Heating method |
Gas |
Electric |
|
Diameter of spring roll |
23-30cm Single Row 13-17cm Double row (Customized) |
23-30cm Single Row 13-17cm Double row (Customized) |
|
Shape |
Circular or Square |
Circular or Square |
|
Power |
0.37-0.43KW |
12KW |
|
Voltage |
220V |
220V |
|
Dimension |
1350*720*1300mm |
1350*720*1300mm |
|
Weight |
280kg |
280kg |
|
Model |
HT-SR50-42 |
HT-SD50-42 |
|
Heating method |
Gas |
Electric |
|
Diameter of spring roll |
31-40cm Single Row 18-22cm Double row (Customized) |
31-40cm Single Row 18-22cm Double row (Customized) |
|
Shape |
Circular or Square |
Circular or Square |
|
Power |
0.37-0.43KW |
15KW |
|
Voltage |
220V |
|
|
Dimension |
1200*730*1200mm |
1280*670*400mm |
|
Weight |
355kg |
355kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
