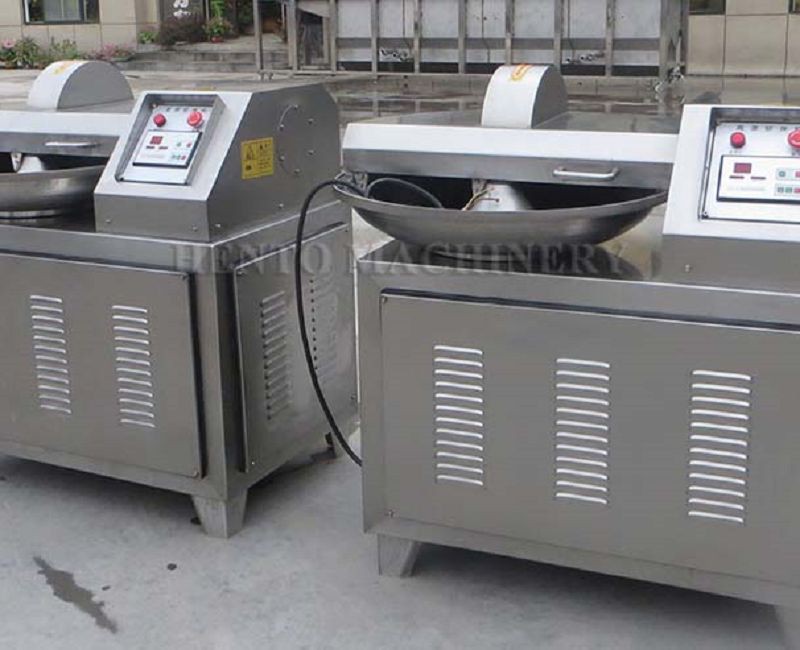

Meat Bowl Cutter
2.There is no leakage of material or water when mixing or cleaning. The cutter shaft adopts multi-layer seal to prolong the service life of the bearing, prevent oil from entering the pot, keep the rotating part of the cutter shaft well lubricated, and make the transmission stable.
3.Frequency conversion control can also be used instead, and the knife speed adjustment range is large, which is suitable for many different process requirements.
Working Principle of Commercial Meat Bowl Chopper:
The working principle of a Commercial Meat Bowl Chopper involves a rotating bowl with a set of sharp blades that move at high speeds, cutting through the raw materials placed inside. As the blades rotate, they create a centrifugal force that pushes the meat towards the walls of the bowl, where it is cut by the blades. This action continues until the desired texture is achieved. The machine also has a vacuum system that removes air from the bowl, reducing oxidation and extending the shelf life of the final product.
The material of Meat Bowl Cutter
1. Bowl cutter machine is made of stainless steel, with compact structure, beautiful appearance and easy cleaning.
2. The main components are processed by the machining center to ensure the processing accuracy.
3. The bowl cutter machine’s blade is sharp and durable, high-speed operation is stable, and the effect of material transfer and emulsification is good.
4. Imported bearings are selected; the motor conforms to European standards and has strong overload resistance.
5. The rotation speed reaches 4500 rpm, which can greatly improve the emulsification effect, make the product yield higher and the effect better.
6. The gap between the tip of the knife and the chopping pot is less than 1.5mm
How to Operate Meat and Vegetable Cutter Machine:
The operation of a Meat and Vegetable Cutter Machine varies depending on the specific model, but generally involves the following steps:
1. Preparation: Before operating the machine, ensure that all tools and equipment are clean and in good working condition. Choose the appropriate blade for the type of food being processed and set up the machine according to the manufacturer's instructions.
2. Loading: Load the raw materials into the bowl, taking care not to overload it. The amount of food loaded should be within the recommended capacity of the machine.
3. Starting: Once loaded, ensure that the lid is securely closed and start the machine. Some models may have different speed settings or other features that need to be adjusted before starting.
4. Processing: Allow the machine to run until the desired texture is achieved, periodically checking the progress of the cut. Some models may require the operator to adjust the blade speed or other settings during processing to achieve the desired consistency.
Technical Parameter
|
Model |
HT-ZB20 |
HT-ZB40 |
HT-ZB80 |
HT-ZB125 |
|
Power |
3kw |
5.1kw |
13.98kw |
21.48kw |
|
Capacity |
10-15kg |
30kg |
60kg |
90kg |
|
Amount of |
3 |
3 |
6 |
6 |
|
Volatge |
380v |
380v |
380v |
380v |
|
Dimension |
800*650*900mm |
1220*930*1220mm |
1820*1360*1250 |
1950*1450*1350mm |
Product Pictures
