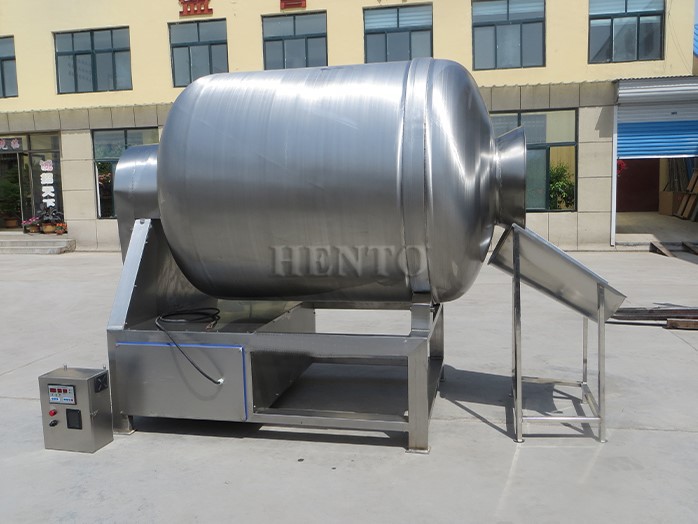

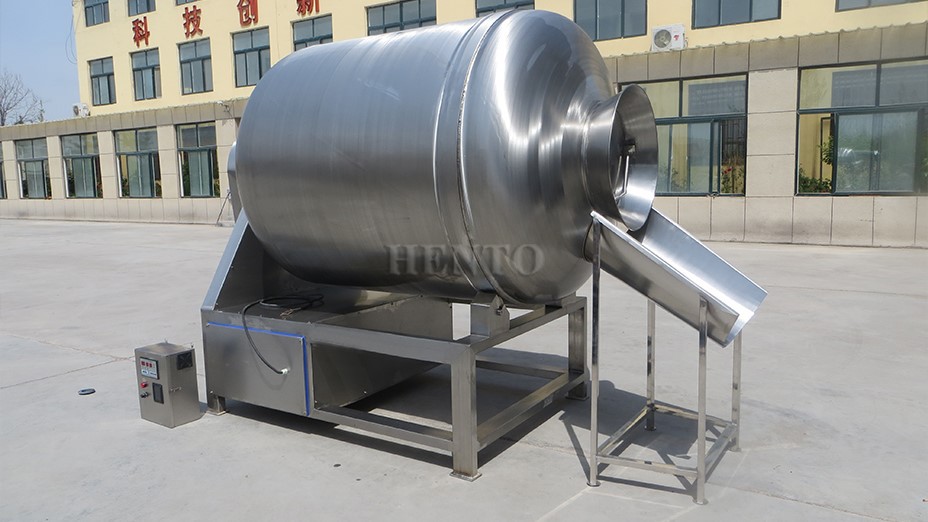

Vacuum Meat Tumbling Machine
2. Enhance the binding force of meat and improve the elasticity of meat
3. Vacuum Meat Tumbling Machine to ensure the slicing of meat products and prevent breakage and crack during slicing
4. Increase water retention and product yield
5. Increase the tenderness and elasticity of the product and improve the taste of the product
working Principle
The Vacuum Meat Tumbling Machine uses the principle of physical impact to make meat pieces or meat fillings turn up and down in the roller under vacuum, so as to achieve massage and pickling. The pickling solution is fully absorbed by the meat, which enhances the binding force and water retention of the meat, and improves the elasticity and yield of the product. Vacuum Meat Tumbling Machine is made of stainless steel, with round head, reasonable structure, stable operation, low noise, reliable performance, simple operation, and high equipment efficiency. The blade is of arc shape and reasonable design, which makes the marinade evenly distributed, does not cause damage to the surface of the product, and improves the flexibility and appearance of the product.
Machine Features of
Vacuum Meat Tumbling Machine
1. The blade is of arc shape and reasonable design, which makes the marinade evenly distributed, does not cause damage to the surface of the product, and improves the flexibility and appearance of the product;
2. Single speed rolling, double speed rolling and variable frequency operation are optional;
01
Set the total rolling time, intermittent rolling time and vacuum rolling time;
02
Vacuum Meat Tumbling Machine can realize automatic discharging, reduce labor intensity and improve productivity
03
It has the functions of continuous, intermittent rolling, reverse rolling and discharging;
04
The whole is made of 304 stainless steel, which meets the hygienic standard of food machinery;
comparison of product parameters
|
Model |
Capacity |
Voltage/Power |
Dimension |
Weight |
|
HT-GRJ50 |
35kg/batch |
220/380v 1.5kw |
860*550*930mm |
100kg |
|
HT-GRJ100 |
75kg/batch |
220/380v 1.5kw |
1000*620*1100mm |
190kg |
|
HT-GRJ150 |
112kg/batch |
380v 2.25kw |
1100*750*1200mm |
250kg |
|
HT-GRJ200 |
150kg/batch |
380v 2.25kw |
1200*810*1290mm |
280kg |
|
HT-GRJ300 |
225kg/batch |
380v 2.25kw |
1280*910*1340mm |
320kg |
|
HT-GRJ400 |
300kg/batch |
380v 2.2kw |
1670*1000*1550mm |
280kg |
|
HT-GRJ500 |
360kg/batch |
380v 2.75kw |
1750*1000*1550mm |
300kg |
|
HT-GRJ600 |
480kg/batch |
380v 2.95kw |
1850*1000*1550mm |
350kg |
|
HT-GRJ800 |
450-550kg/batch |
380v 4.5kw |
2100*1120*1800mm |
600kg |
|
HT-GRJ1000 |
500-600kg/batch |
380v 4.5kw |
2100*1220*1800mmm |
800kg |
|
HT-GRJ1200 |
600-700kg/batch |
380v 5.5kw |
2300*1320*1900mm |
900kg |
|
HT-GRJ1400 |
1050kg/batch |
380v 5.5kw |
2320*1320*1950mm |
980kg |
|
HT-GRJ1500 |
1000kg/batch |
380v 9kw |
2650*1400*1950mm |
1500kg |
|
HT-GRJ1600 |
1000-1200kg/batch |
380v 5.5kw |
2600*1300*2000mm |
1080kg |
|
HT-GRJ1800 |
1500kg/batch |
380v 5.5kw |
2700*1540*2090mm |
1330kg |
|
HT-GRJ2000 |
1000kg/batch |
380v 7kw |
2500*1420*2000mm |
1200kg |
|
HT-GRJ2600 |
1200kg/batch |
380v 7kw |
2800*1420*2000mm |
1500kg |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
