Automatic Tea Bag Packing Machine
video

Automatic Tea Bag Packing Machine

The automatic tea bag packaging machine is an automatic packaging equipment used for internal and external packaging of tea bag products.
Send Inquiry
Product Introduction

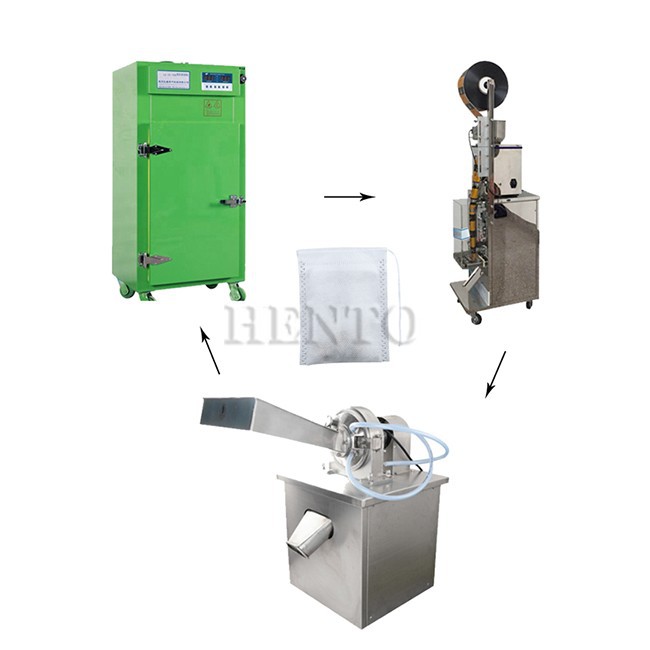

Automatic Tea Bag Packing Machine
Automatic Tea Bag Packing Machine

Automatic Tea Bag Packing Machine is a heat-sealing, multi-functional fully automatic tea bag beverage packaging equipment. The main feature of this machine is that the inner and outer bags are formed at one time, which avoids direct contact between human hands and materials and improves efficiency. The inner bag is made of filter tissue paper, which can be automatically stringed and labeled, and the outer bag is made of composite paper. Its greatest advantage is that both labeling and outer bags can use photoelectric positioning, and the packaging capacity, inner bags, outer bags, labels, etc. can be adjusted arbitrarily. The sizes of inner and outer bags can be adjusted according to the different needs of users to achieve optimal packaging. The effect is to improve the appearance of the product and increase the value of the product.



product parameters

 Drying Machine:

Model

HT-T09

HT-T12

HT-T16

Motor power

0.55KW

0.55KW

0.55KW

Heating power

4KW

6.55KW

12KW

Capacity

40-60kg/batch

70-90kg/batch

80-100kg/batch

Dimension

710*670*1370mm

960*818*1855mm

1180*1100*2080mm

Baking tray layers

9 12 16

Chamber Dimension

560*540*810mm

760*790*1085mm

990*960*1350mm

Weight

120kg

177kg

320kg

Voltage 220v 380v 380v



Grinding Machine:



Model

HT-MFJ180

HT-MFJ250

HT-MFJ350

Capacity

40-75kg/h

80-250kg/h

250-550kg/h

Power

3kw

5.5kw

7.5kw

Voltage

380V/50HZ

380V/50HZ

380V/50HZ

Mesh

10-120μm

10-120μm

10-120μm

Spindle speed

4500r/min

3400r/min

3800r/min

Dimension

556*450*900mm

765*575*1180mm

1167*630*1150mm

Weight

110kg

200kg

280kg



Tea Bag Packing Machine:



Machine model

HT-BZC50

HT-BZC50

Function

weighing, filling, sealing and cutting (can add date coding machine)

weighing, filling, sealing and cutting (can add date coding machine)

Capacity

15-30 times/min

15-30 times/min

Sealing type

Trilateral seal

back seal

Packing accuracy

0.1-0.3g

0.1-0.3g

Formed Size

30-100mm

30-100mm

Film Width

60-200mm

60-200mm

Dimension

430*510*1400mm

430*510*1400mm

Weight

57kg

57kg

Voltage

220V 50HZ

220V 50HZ

Power

450w

450w

Material

Stainless steel

Stainless steel

Scope of application

It is suitable for brewing bag packaging of various tea, coffee, Chinese herbal medicine, plants and other filtered materials. It can continuously and automatically complete the entire packaging process of bag making, metering, filling, sealing, cutting, and technology. Most packaging bags have handles. The packaging material is hot air-resistant tissue paper.

The emergence of Automatic Tea Bag Packing Machine has replaced the traditional manual packaging of tea, providing better guarantee for the mass production and sales of tea, allowing large tea companies to save costs and improve production efficiency.

Automatic Tea Bag Packing Machine1
FAQ

Q: 1.What's the MOQ:

A: 1 set

Q: 2. Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service:

A: Support voltage changing service as your demand;
 Support logo customizing ;
 Provide good solution for your project ;
 Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A:  Video technical support;
 Online support ;
 Field installation, commissioning and training;
