Potato Chips Making Line

1. Potato Chips Making Line, with multiple machines working together to reduce labor and improve efficiency.
2. The machine material is 304 stainless steel, which is clean, hygienic, and durable.
3. Customization and diversified production can be carried out according to customer requirements.
Send Inquiry
Product Introduction

Potato Chips Making Line




Machine Introduction



Potato Chips Making Line is used to clean and peel fresh potatoes, and process them into flat or wavy fresh potato chips through different blades. The processed potato chips are specially processed and fried for seasoning, supporting crispy and delicious fried fresh potato chips. Potato chips and fries processing flow:

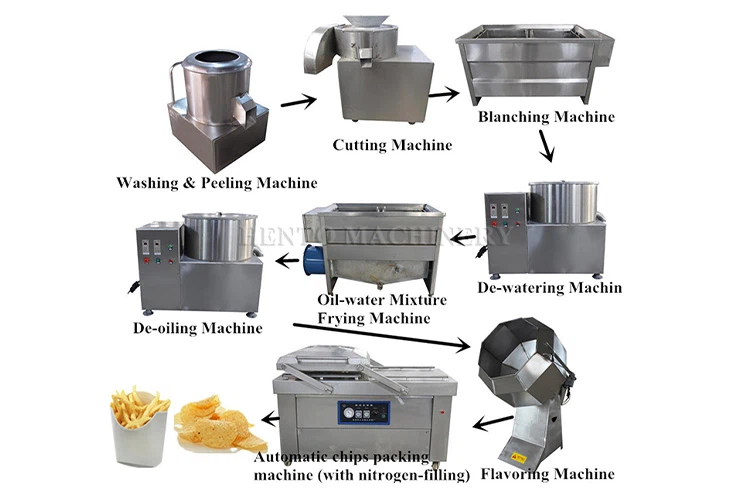

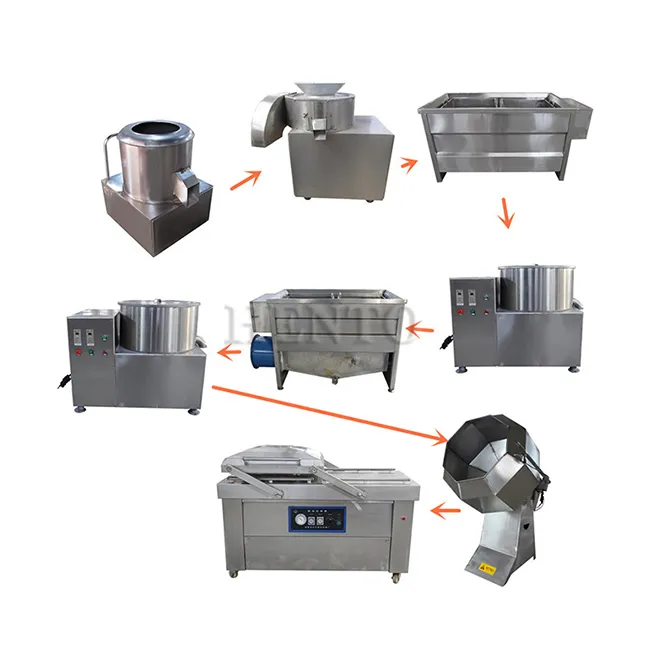

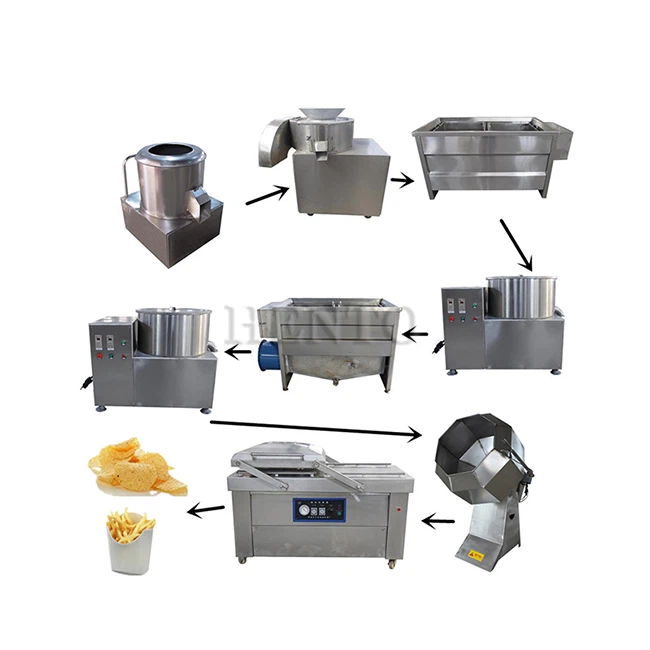

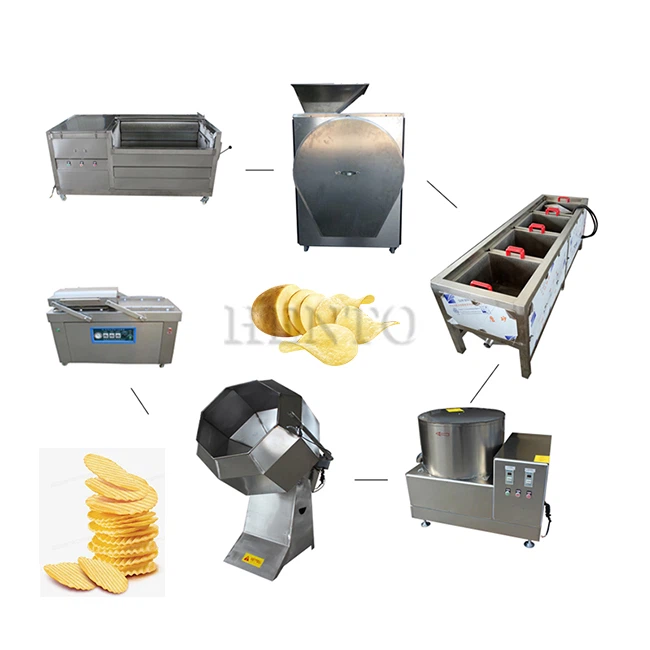

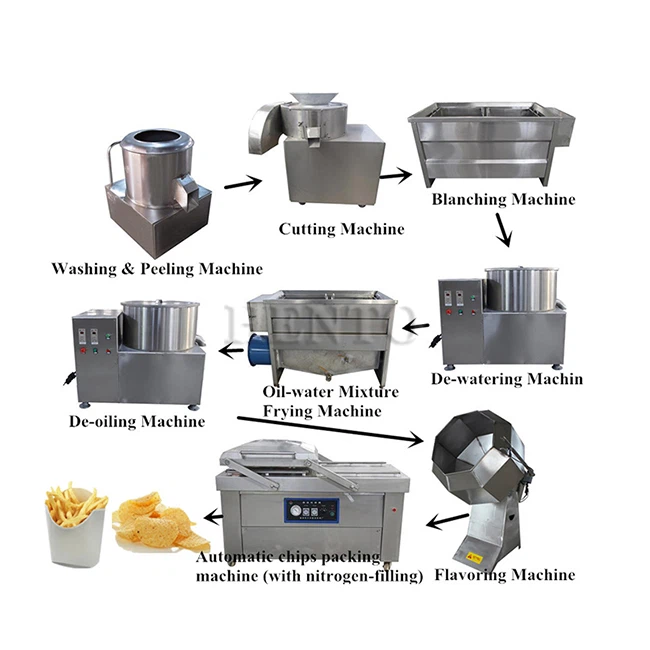

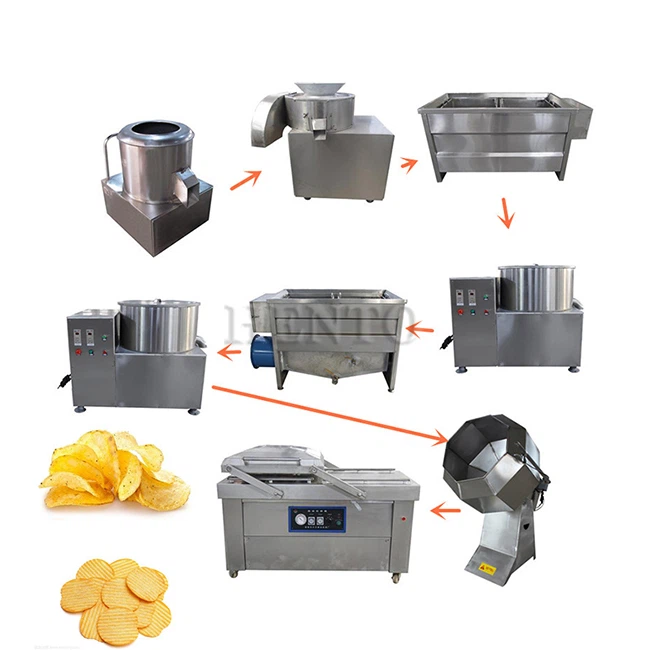

1. Cleaning and peeling -2. Slicing and slicing -3. Cleaning and blanching -4. Centrifugal dehydration -5. Deep frying -6. Centrifugal degreasing -7. Seasoning -8. Packaging





Machine composition and function



The first step is washing and peeling the potatoes. Cleaning & peeling machine or brush type cleaning peeling machine, both of them could finish cleaning and peeling one time, high efficiency and low cost.

After that, cut the potatoes, you could cut potato into both slice and bar shape, besides, the thickness and size of them could be adjusted totally as your preference.

Thirdly, put the potatoes chips or strips into blanching machine for washing, making them look more attractive.

The following step is de-watering in order to save the time of frying and make the products more delicious.

Then Fry the potato chips in the oil-water mixture frying machine: This increases greatly the oil's using cycle, saving lots of cost. What's more, the exact oil temperature guarantees the good quality and taste of potato chips.

De-oiling machine: reduce the oil content of potato chips, make them more delicious.

Flavoring machine: adopting spray method, making seasoning even and potato chips no teasy to break.

Packing machine: inflate the nitrogen into bag while making packaging. This could prevent the potato chips from being broken and extend the shelf life.

Contact now



Potato chips production line(100KG/hour)





Washingand peeling machine

Washingand peeling machine HT-CY800

 Power:1.1kw 380V 210kg

    Size:1400*850*800mm        Capacity 200kg/hour

De-oiling machine

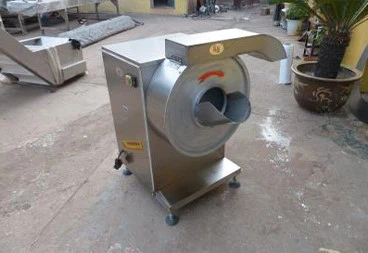

Chips Cutting machine

HT-PC300

Power:1.1kw 380V 110kg

    Size:950*900*1000mm

Capacity:600-700kg/hour

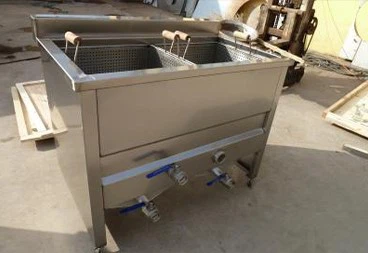

Blanching machine

Blanching machine

HT-PTJ100

    Power:24kw 380v 120kg

     Size:1200*700*950mm

      Capacity:100kg/hour

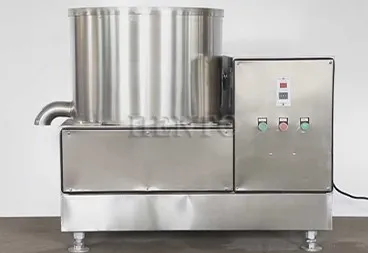

De-watering machine

De-watering machine

HT-TYJ01

Power:1.1kw 380v-3 220v-3

  Size:1000*500*850mm

     Capcity:200kg/hour

Blanching machine

Frying machine

HT-YZJ200

Power:24kw 380v 120kg

Size:1200*700*950mm

Capacity:100kg/hour

De-watering machine

De-oiling machine

HT-TYJ01

Power:1.1kw 380v-3 390kg

Size:1000*500*850mm

Capacity:200kg/h

Seasoning machine

Seasoning machine

HT-BJBL100

Power:1.1kw 380v190kg

Size:1100*800*1300mm

Capacity:300kg/h

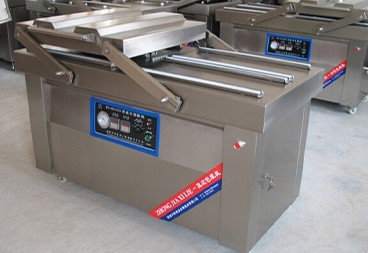

Nitrogen filled the vacuum packaging machine

Nitrogen filled the vacuum packaging machine

HT-ZKB2B

Power:1.5kw 380v-3 260kg

Size:1200*600*850mm

Capcity:300kg/h

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service?

A: Support voltage changing service as your demand;  Support logo customizing ;  Provide good solution for your project ;  Testing and debugging before delivery ;

Q: What about After-sales service?

A: Video technical support;  Online support ;  Field installation, commissioning and training;
