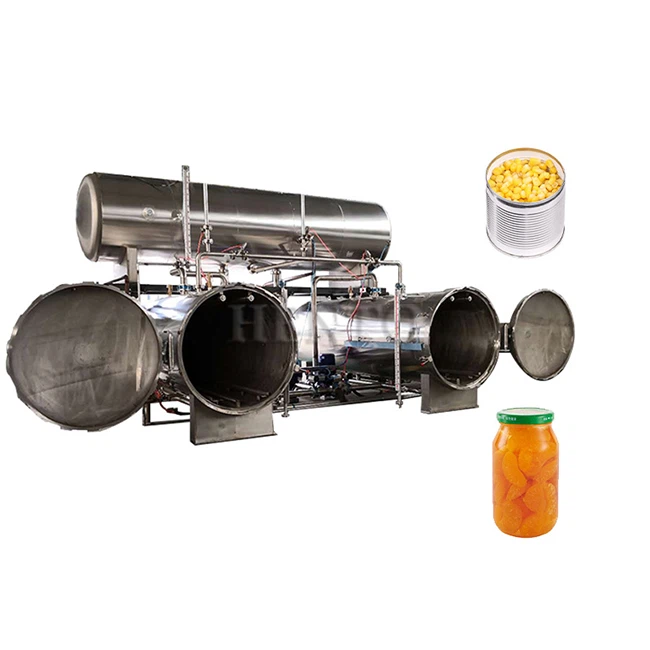

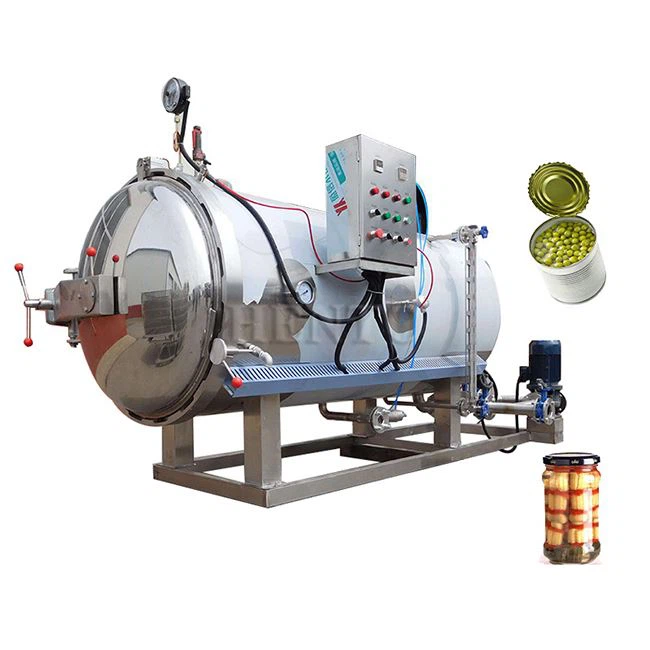

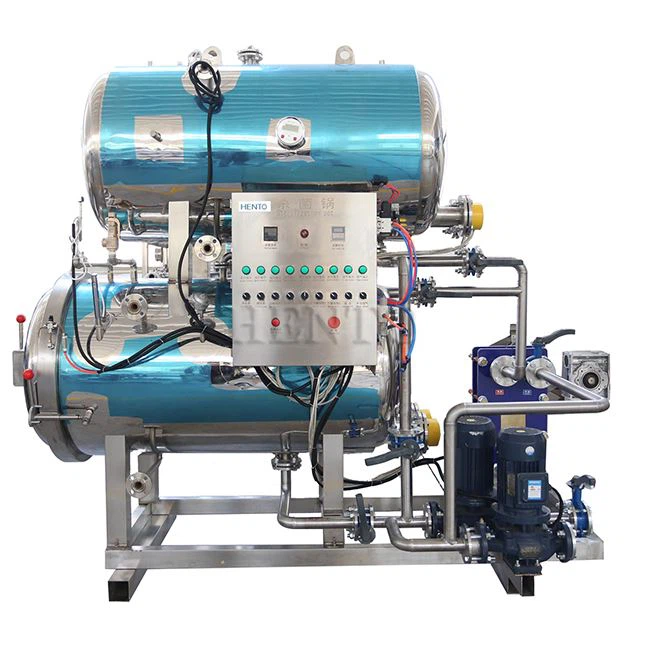

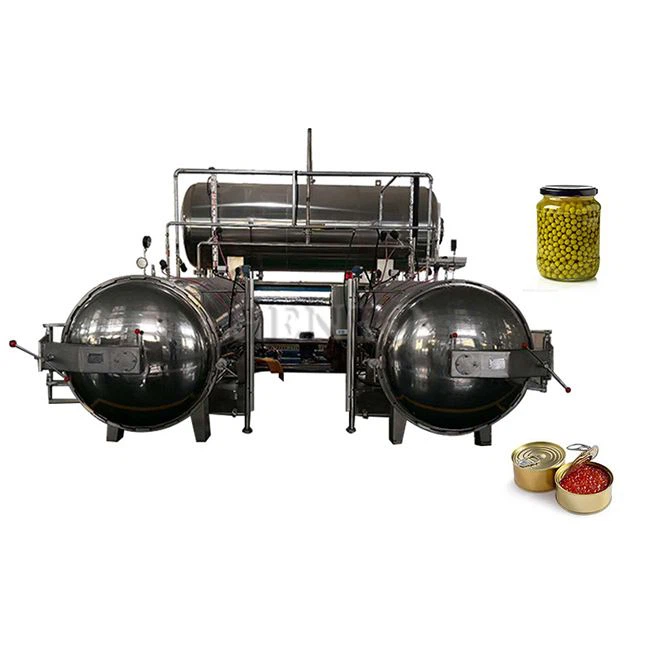

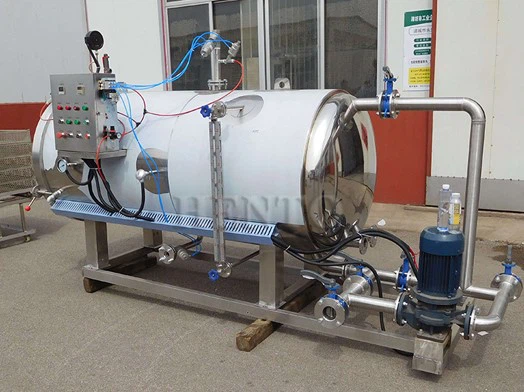

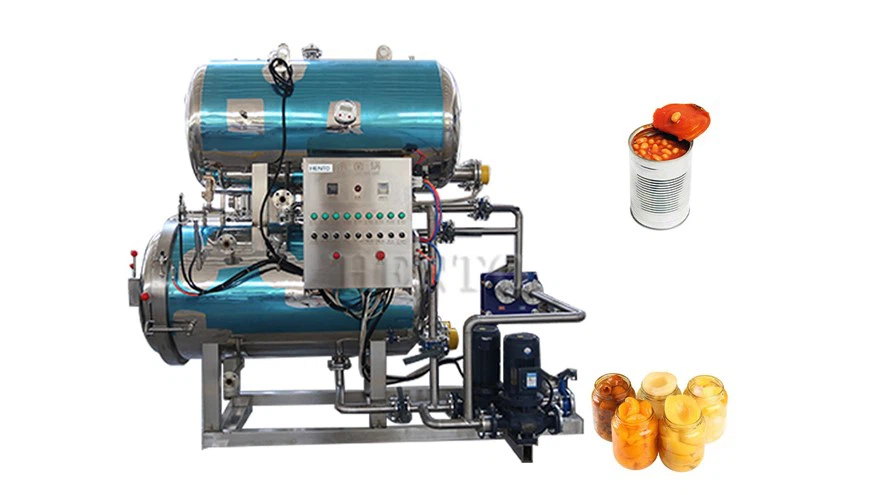

Canned Food Sterilizer
introduction and Advantages of Canned food sterilizer
Stainless steel material one-piece molding
Thickened stainless steel, one-piece molding, not easy to wear and oxidation, customizable: steam, spray, water bath sterilization method: horizontal double-layer, horizontal single-layer, vertical double pots in parallel, multiple pots in parallel.
No bursting of bottles and no swelling of bags
With a back pressure device, no bursting of bottles, no swelling of bags, good sterilization effect, and a high-temperature sterilization pot that does not lose the color, aroma and nutrition of the product.
Uniform heating, various forms
Adopt hot water circulation sterilization method, the circulating water in the sterilization tank is up, down, left, and right, and the tank is constantly switched from heating, insulation to cooling, and the heat distribution is uniform.
Support customization and save time and effort
The equipment can be automatically controlled and intelligently controlled, saving time, effort and worry, one pot for multiple uses, saving time and effort.
More details about the Canned food sterilizer
Independent microcomputer control, time-saving and labor-saving operation is more convenient.
The sterilizer is equipped with an independent microcomputer control system, which can store the process. For different packaging sizes, the touch screen storage process is simple and convenient. It is a special equipment for food sterilization to extend the shelf life.
Industrial-grade motor, more durable.
Industrial-grade motor, strong power. Long service life and good durability
Inflatable sealing strip, better sealing effect
Adopt inflatable silicone sealing strip, good sealing effect, good equipment insulation effect, uniform temperature in the tank.
Product parameters
|
Model |
HT-SJG360 |
|
Inner diameter/tube length/volume |
1200mm/3600 /4.6 |
|
Design pressure |
0.35 Mpa |
|
Work pressure |
0.3 Mpa |
|
Test pressure |
0.44Mpa |
|
Maximum working temperature |
145℃ |
|
Equipped with boiler model / minimum pressure |
1.5T/6kg |
|
Total installed power |
15KW |
|
Voltage |
380V |
|
Sterilization tray size |
According to customer requirements |
|
Pot body material |
06Cr19Ni10 |
|
Pot wall thickness |
6mm |
|
Area |
5800*4000*3200〔Length*Width*Height〕 |
|
Water quality requirements |
Tap water, the chloride ion content in the water is not higher than 25mg/L |
|
Steam |
360kg |
|
Tap water |
5600L(Can be recycled) |
|
Capacity |
Each can of processed food is approximately: 600kg (take leisure products as an example) |
FAQ
Q: 1.What's the MOQ?
A: 1 set
Q: 2. Can the machine be customized?
A: A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6. How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service:
A: A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
