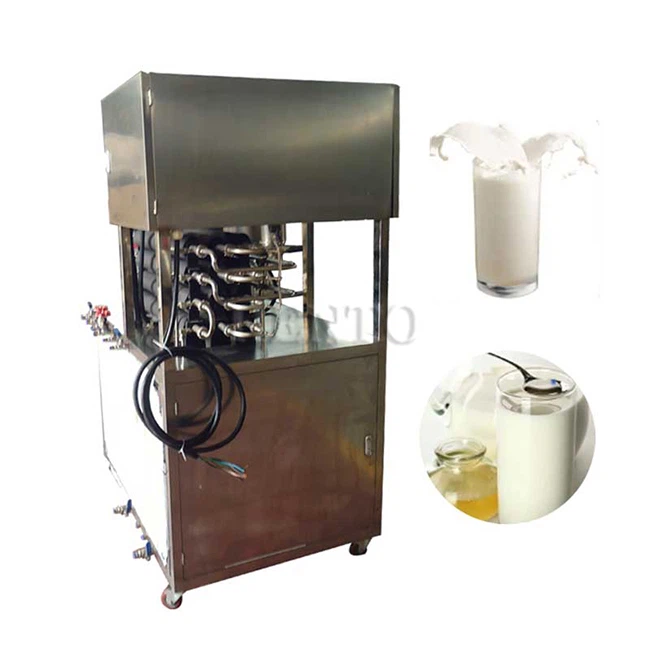

UHT Sterilizing Machine
2. Cleanliness: Class 100, in accordance with federal standard 209D Class 100
Intruduction of UHT Sterilizing Machine
The Machine is a tubular sterilizer specially made for laboratories of universities and research and development institutions of production units to obtain test data. It integrates heating, sterilization, cooling, fully simulates the actual production conditions of the production workshop, and truly reflects the production data in the laboratory. Optional homogenizer, aseptic filling room, etc.
More information of UHT Sterilizing Machine
The Machine is equipped with a touch screen and PLC program control, which dynamically reflects various parameters such as product temperature and flow. It is easy and flexible to operate, has CIP cleaning function, high temperature alarm for reflux valve action, and low temperature reflux (automatic)
Functions
Original formula determination/formula update, taste identification, color evaluation, stabilizer/emulsifier application, shelf life experiment, production of samples for customers
Applicable Products
Milk, juice, condiments, additives, tea drinks, beer and other beverages and various similar heat-sensitive liquids for homogenization and pasteurization, high temperature sterilization, ultra-high temperature sterilization and other process treatments.
Contact now
product parameters For UHT Sterilizing Machine
|
Model Item |
HT-SJJ50B |
|
Material pipe |
Made of imported 316# stainless steel |
|
Occupied Area |
Mini and removable type;2-3square meter |
|
Minimum capacity |
800ml / 3L~5L,shorten lab time |
|
material flow |
25L/hour as you required. 5-50L/H(can be made according to customers' need) |
|
Sterilizing temperature |
100-150 °C88-142°C |
|
Sterilizing time |
2s as you required. 3S,5S,15S,30S |
|
Temp. Precision |
±1°C |
|
Material inlet and outlet diameters |
14 |
|
Cooling water inlet and outlet diameters |
25 |
|
Machine power |
12kw(for this machine, the supply 12Kw supply is the perfect power, 4Kw can not burden) |
|
Machine dimension |
1800*800*1200mm(LXWXH) |
|
Machine weight |
200kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
working principle
The operation of this device can be divided into the following four steps:
1. Pre sterilization of equipment: circulate sterilization of material pipelines at high temperatures to reach a water temperature of 121 ℃ in the buffer tank and maintain it for two minutes;
2. Material sterilization: Determine the sterilization temperature and time according to the process. If the product requires homogenization, the equipment can be equipped with pre homogenization (before sterilization) and post homogenization (after sterilization) options;
3. Filling: Customers can be equipped with ultra clean filling rooms and sterile filling rooms. Hot filling (temperature 88-90 ℃) and cold filling (temperature ≤ 25 ℃) can be selected for infusion;
4. Cleaning: divided into sterile intermediate cleaning and final cleaning. When converting different products or when products are prone to sticking, a sterile intermediate cleaning can be performed on the pipeline. After the experiment, perform CIP final cleaning.
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
