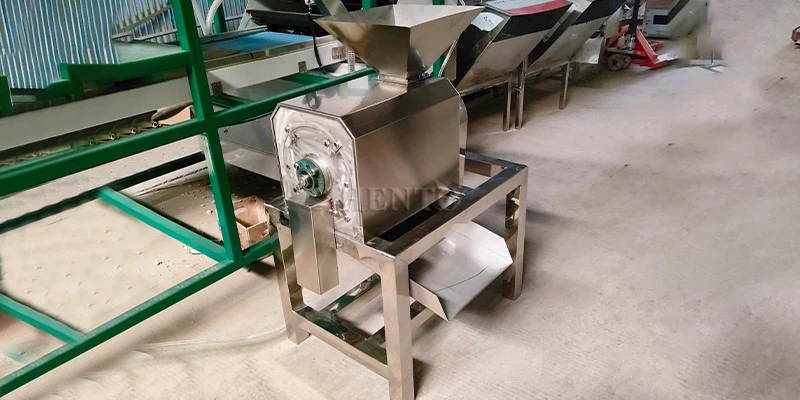

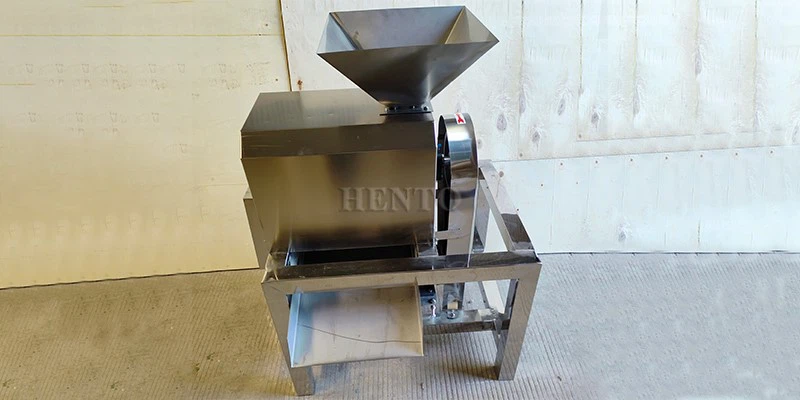

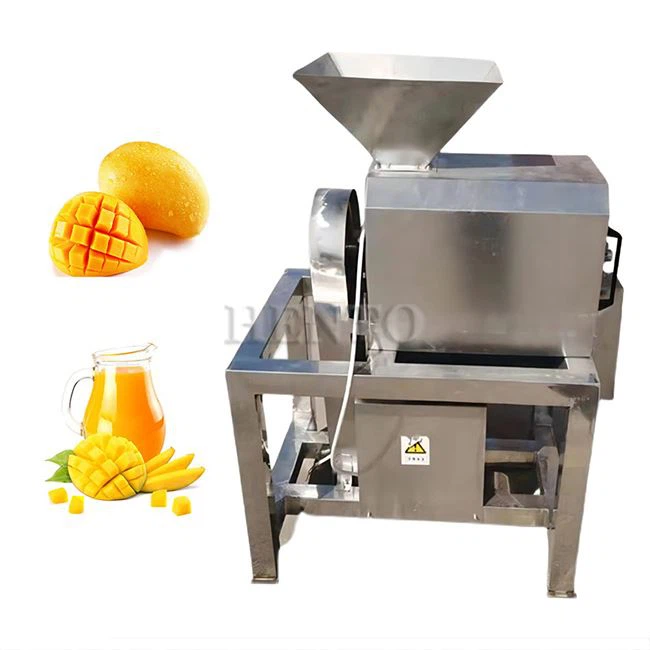

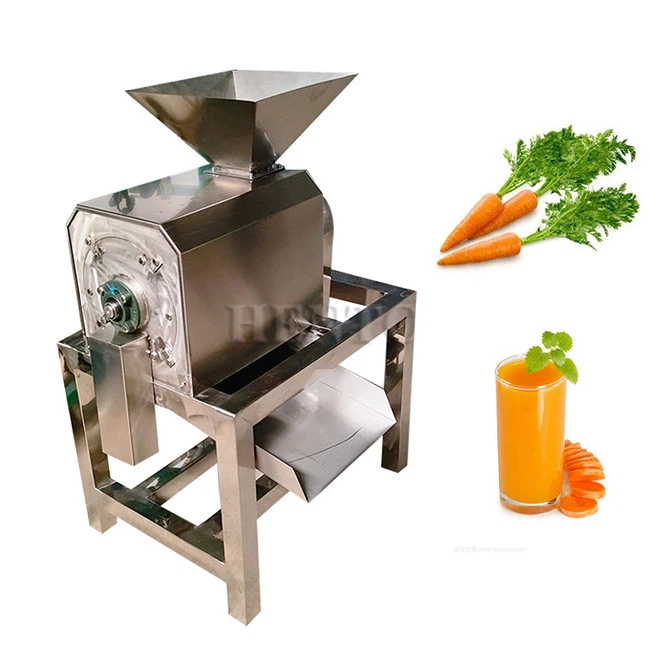

Mango Jam Making Machine
Application for Mango Jam Making Machine
Mango pulping machine is mainly used to process mangoes, including peeling, pitting, pulping and other processes. This equipment is particularly suitable for fruit and vegetable processing plants, food processing plants, juice and beverage plants, pastry houses, pharmaceutical plants, and catering industries. The main functions of mango pulping machine include peel, pit, pulp separation, as well as peel and pit removal, and finally conveying pulp and other processes.
Feature of Mango Jam Making Machine
User-friendly design
The machine is designed to be user-friendly with easy controls. It is easy to operate, even for novices, and requires minimal supervision.
High-quality materials
The mango jam making machine is made of high-quality stainless steel, making it durable and hygienic. It is easy to clean and maintain, ensuring long-term usage.
High production capacity
The machine has a high production capacity, allowing it to produce large quantities of mango jam in a short period.
Uniform consistency
The machine ensures uniform consistency of the mango jam, ensuring that every jar of jam produced is of the same quality.
Contact now
comparison of product parameters
|
Model |
HT-QH1-0.5 |
HT-QH1-1.0 |
HT-QH2-1.5 |
|
Type |
Single Channel De nuclear pulper |
Single Channel De nuclear pulper |
Double Channel De nuclear pulper |
|
Voltage |
380v |
380v |
380v |
|
Power |
1.5kw |
3kw |
8kw |
|
Capacity |
500kg/h |
1000kg/h |
1000-1500kg/h |
|
Dimension |
930*750*1360mm |
1050*850*1100mm |
1150*1100*1750mm |
|
Weight |
130kg |
150kg |
460kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Working Principle of Mango Jam Making Machine

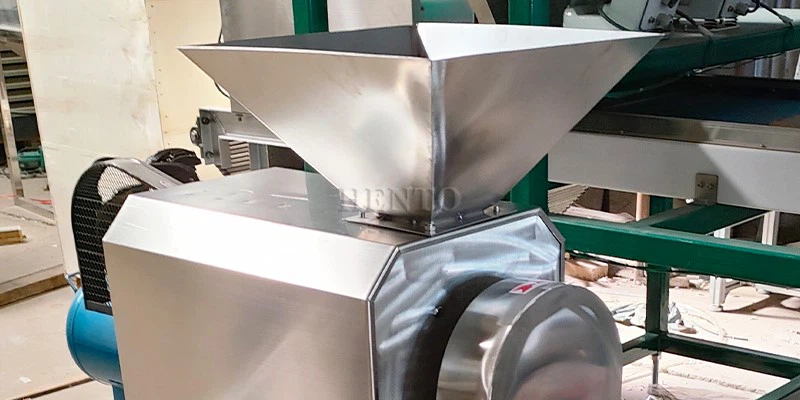

The working principle of mango pulping machine usually involves pouring mangoes into the feed hopper through a conveyor belt or manually, and then crushing them through a rotating crushing disk, using centrifugal force to flow the pulp and juice out of the sieve holes, while larger particles such as skin and pit move along the cylindrical screen to the outlet end under the propulsion of the striking plate and the lead angle, thereby achieving the purpose of pulp and residue separation.

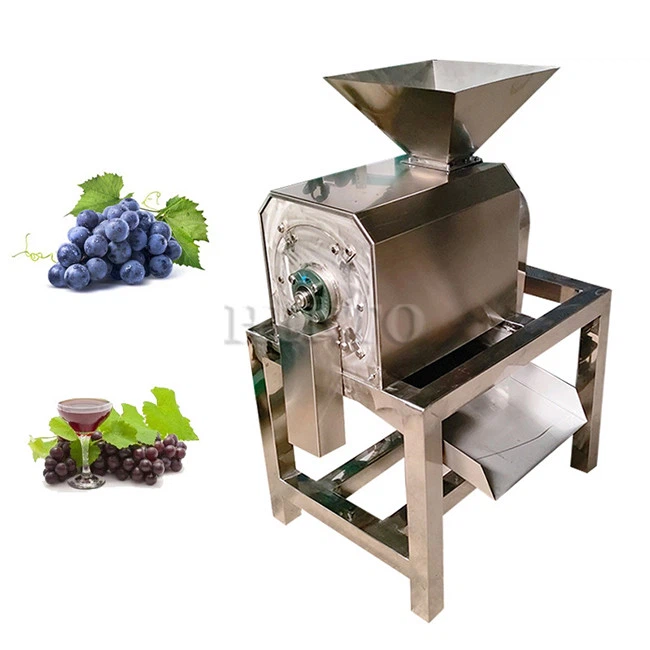

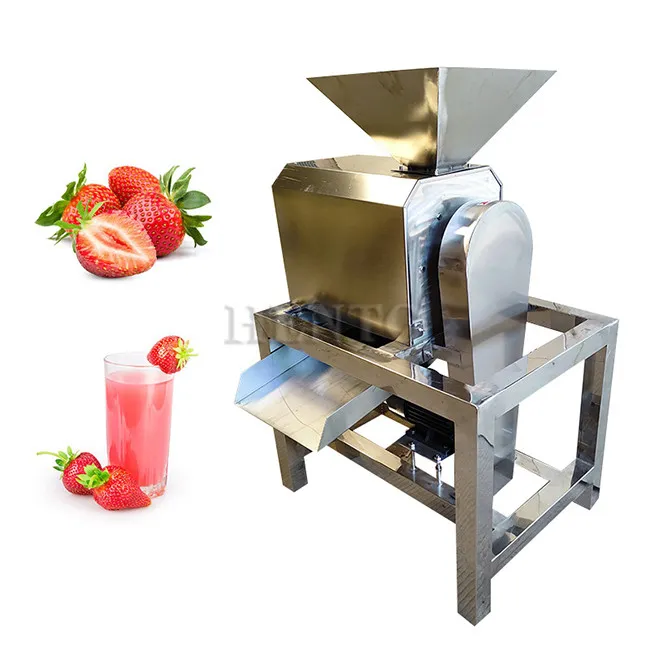

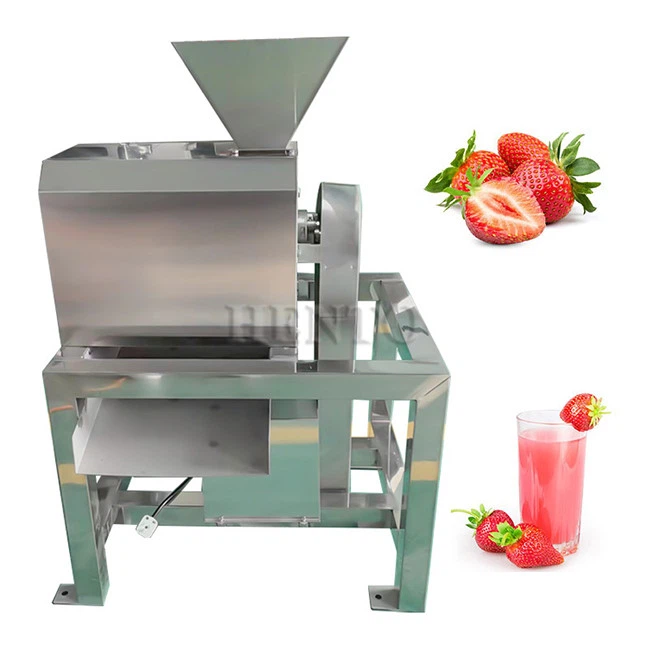

This equipment is not only suitable for mangoes, but can also be used to process other types of fruits, such as oil oranges, peaches, plums, apricots, lychees, cherries, etc., through peeling, pitting, crushing and beating, and finally obtaining the desired pulp.
The design and manufacture of mango pulping machine takes into account high efficiency, stability and durability to ensure long-term stable operation in industrial production environments.
They usually have a high juice yield and capacity to meet the needs of large-scale production. In addition, these equipment may also be customized according to specific needs to adapt to different production environments and process requirements.
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
