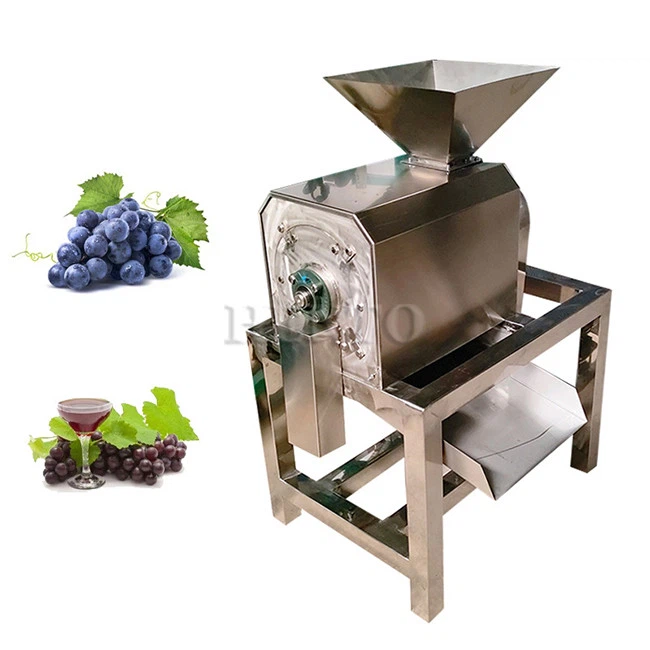

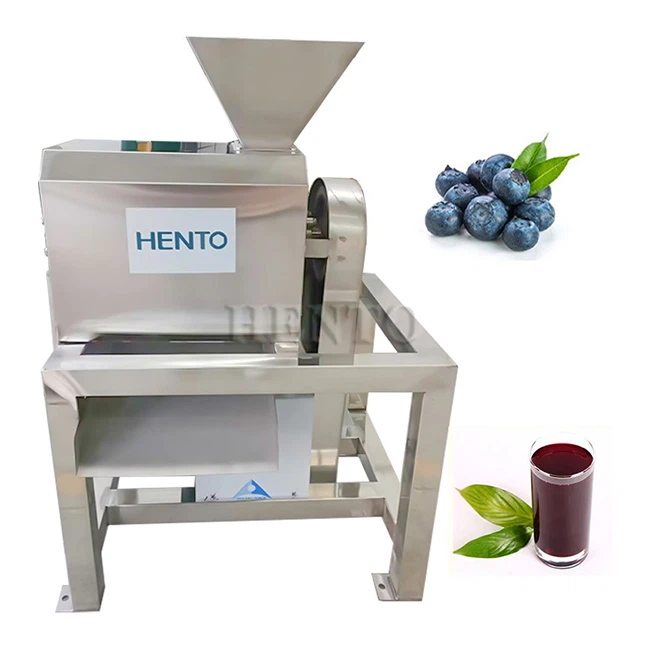

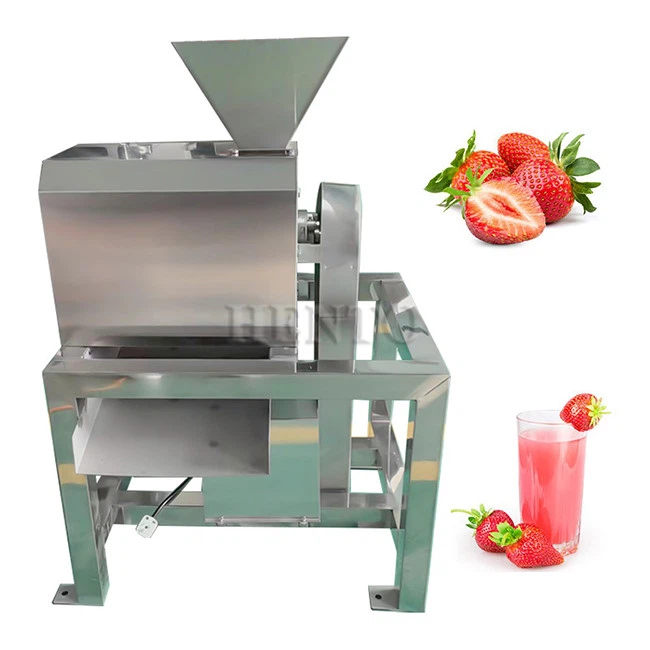

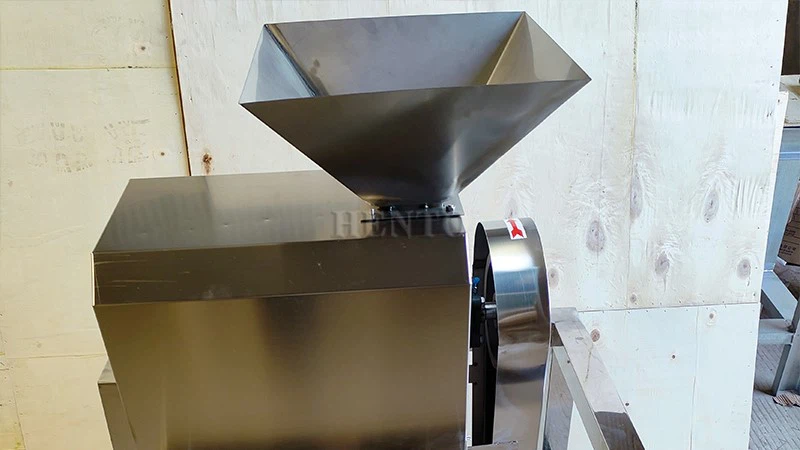

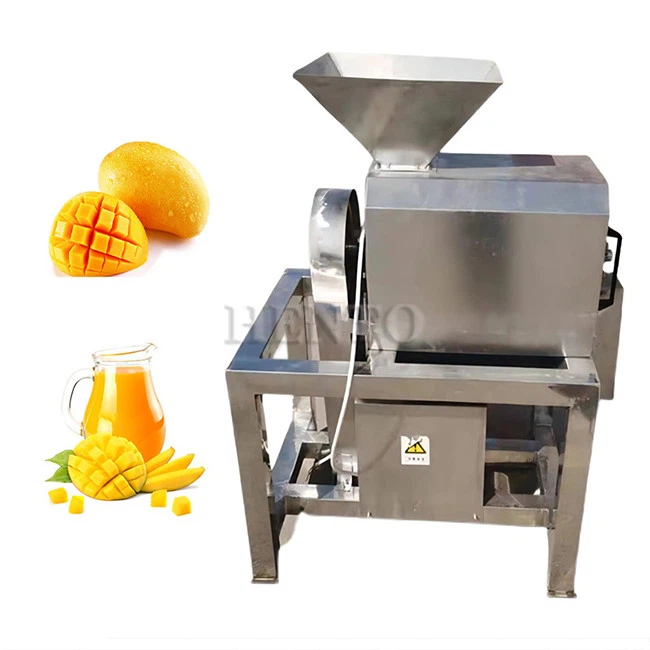

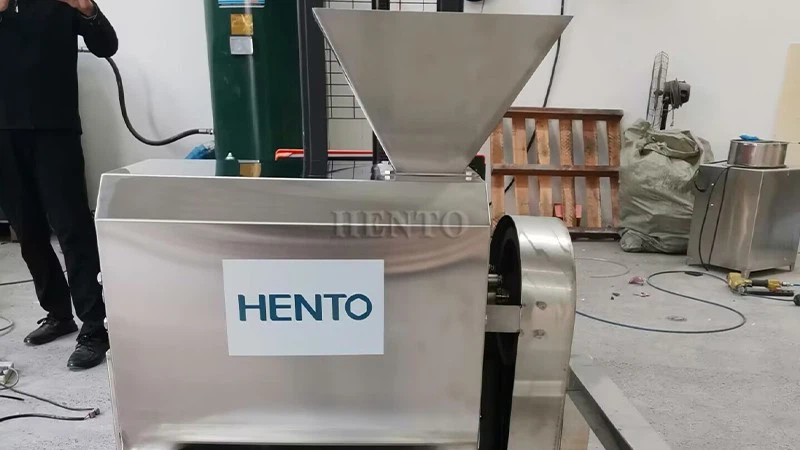

Tomato Jam Making Machine
Application for Tomato Jam Making Machine
It is suitable for tomato, mango, peach, apricot, kiwi, strawberry and pre-cooked soft fruit apple, pear and other fruits to remove core and pulp, and the pulp and residue are automatically separated. The thickness of the vegetable puree can also be adjusted according to customer requirements. It is the preferred equipment for deep processing of vegetables and fruits.
It can be combined on the production line or produced as a single machine
The parts in contact with the material are made of high-quality stainless steel, which meets food hygiene requirements.
Feature of Tomato Jam Making Machine
Food grade stainless steel, suitable for food processing industry.
01
100% pure copper motor, ensures high efficiency and trouble-free operation.
02
304 stainless steel screen, the screen aperture size can be customized according to customer conditions.
03
Suitable for pulping a variety of fruits, high efficiency.
04
It can realize the dual functions of pulping and de-coring, two functions in one machine.
05
comparison of product parameters
|
Model |
HT-QH1-0.5 |
HT-QH1-1.0 |
HT-QH2-1.5 |
|
Type |
Single Channel De nuclear pulper |
Single Channel De nuclear pulper |
Double Channel De nuclear pulper |
|
Voltage |
380v |
380v |
380v |
|
Power |
1.5kw |
3kw |
8kw |
|
Capacity |
500kg/h |
1000kg/h |
1000-1500kg/h |
|
Dimension |
930*750*1360mm |
1050*850*1100mm |
1150*1100*1750mm |
|
Weight |
130kg |
150kg |
460kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Contact now
Working Principle of Tomato Jam Making Machine
1.
It mainly relies on the rotation of the stick and the existence of the lead angle after the material enters the screen drum, so that the material moves along the cylinder to the outlet end, and the trajectory is a spiral line.
2.
In this process, the material is scratched by the centrifugal force when it moves between the scraper and the screen drum, and the juice and meat (in pulp) are sent to the next process through the collector from the screen hole, while the skin and seeds are discharged from the other open end of the cylinder, thereby achieving the purpose of separation.
3.
This working principle enables the pulper to effectively pulp vegetables or fruits such as tomatoes, and at the same time separate the juice and solid residue, which is suitable for making fruit juice, vegetable juice, sauce and other purposes.
4.
In addition, the design of the tomato pulper also involves many aspects, including the design of the pulping shaft, the design of the pressing cage, the selection of the gearbox and the feeder, the design of the adjustment device, etc., to ensure the efficient operation of the machine and the quality of the product.
5.
In general, the tomato pulper can effectively beat tomatoes and other ingredients into pulp through its unique working principle and design, while separating juice and solid residue. It is widely used in the food processing industry to meet various needs such as making fruit juice, vegetable juice, and sauces.
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
