Automatic Animal Feed Production Line
2. The machine capacity can be configured according to customer requirements;
3. The machine is made of stainless steel and has a long service life.
Product Introduction
1.The Automatic Animal Feed Production Line is used to process various grains into high-grade aquatic floating or sinking feed particles for fish, catfish, shrimp, crab, etc. It can also make pet feed and chicken feed for dogs and cats in different shapes.

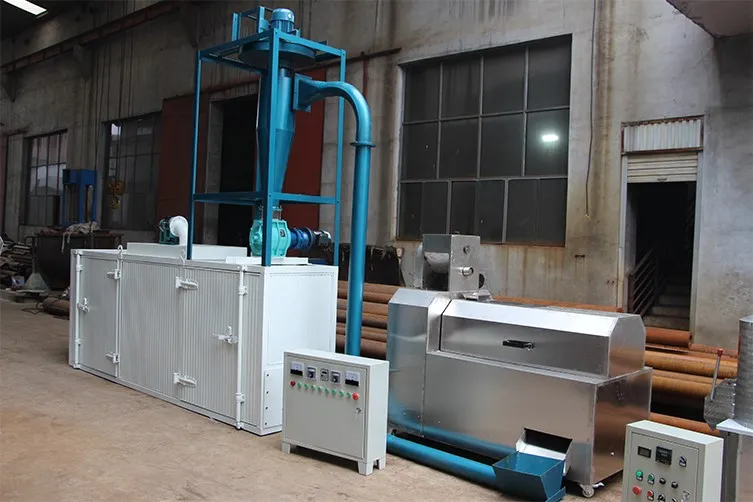

2.The whole production line includes mixer, screw elevator, particle feed extruder, pneumatic conveyor, mesh belt dryer, oil mist seasoning machine.
3.According to the different output, the production line also has a variety of models to choose from.
4.The Automatic Animal Feed Production Line can produce different kinds of animal feed by adjusting the proportion of raw materials and production process parameters.
Applications of Automatic Animal Feed Production Lines
Automatic animal feed production lines are used to produce different types of animal feeds for various purposes, such as:
Poultry feed production:
Automatic animal feed production lines are used to produce poultry feeds for broilers, layers, breeders, and other poultry types. These feeds are formulated with different nutrient profiles to meet the specific nutritional requirements of the birds at different ages and stages of production.
Livestock feed production:
Automatic animal feed production lines are used to manufacture feeds for cattle, pigs, sheep, goats, and other livestock. These feeds are designed to meet the nutritional demands of the animals at different stages of development, from weaning to finishing.
Aquatic animal feed production:
Automatic animal feed production lines are also used to produce feeds for fish, shrimp, and other aquatic animals. These feeds are formulated to ensure the health, growth, and survival of the animals in different production systems, such as ponds, tanks, and cages.
Technical Parameter
comparison of product parameters
|
Model |
HT-SL200 |
|

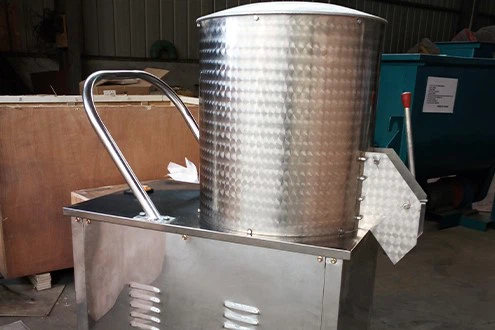

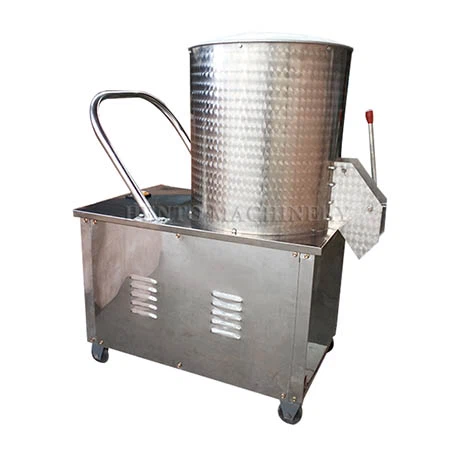

Mixer |
Power: 4kw Output:25kg/batch each batch required Time :10-15 minutes Dimensions: 1100*550*1180mm Weight: 160kg |
|

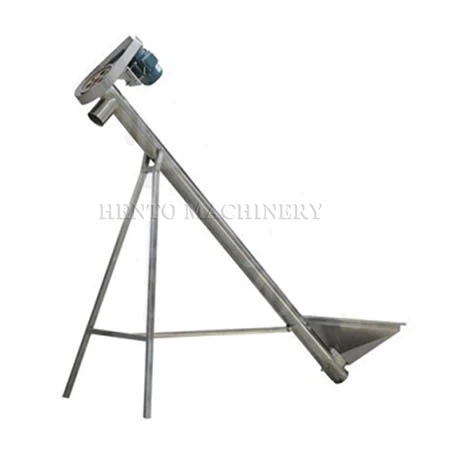

Spiral Elevator |
Power: 1.5kw Output: 150-200kg/h Dimensions: 2500*450*550mm Weight: 82kg |
|

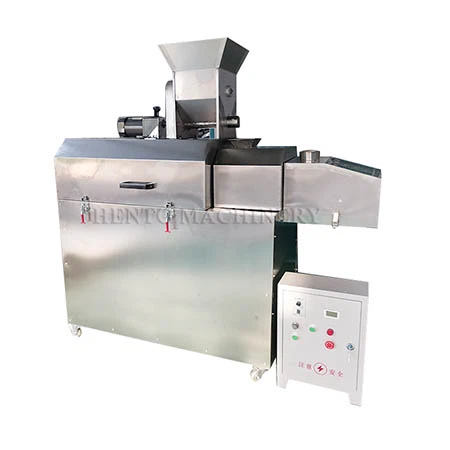

Pellet Feed Extruder |
Main motor power: 15kw Cutting power: 0.4kw Feeding power: 0.2kw Output: 100-150kg/h Dimensions: 1980*750*1500mm Weight: 420kg |
|
Pneumatic Conveying |
Fan power: 2.2kw Discharger power: 0.75kw Output: 150-200kg/h Dimensions: 750*650*1800mm Weight: 210kg |
|

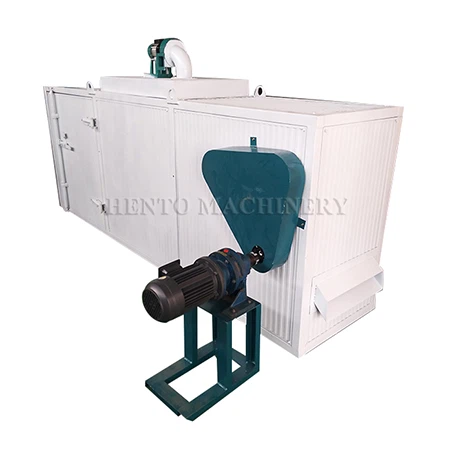

Mesh Belt Dryer |
Heating power: 18kw Fan power: 0.12kw*2 Mesh belt motor power: 1.5kw Number of mesh belt layers: 3 layers Output: 150-200kg/h Dimensions: 3200*1200*1400mm Weight: 580kg |
|
Oil Spray Seasoning Tube |
Host power: 0.75kw Oil pump power: 0.37kw Output: 25kg/batch, it takes 3-5 minutes Dimensions: 1200*1200*1500mm Weight: 85kg |
