Walnut Cookie Machine
2. Walnut Cookie Machine can produce crispy biscuits of various designs and colors. There are many models, which can be customized according to customer needs
3. The machine structure is simple, and the split blade is equipped with an adjustment device, which can adjust the blade to the best position
Machine Introduction

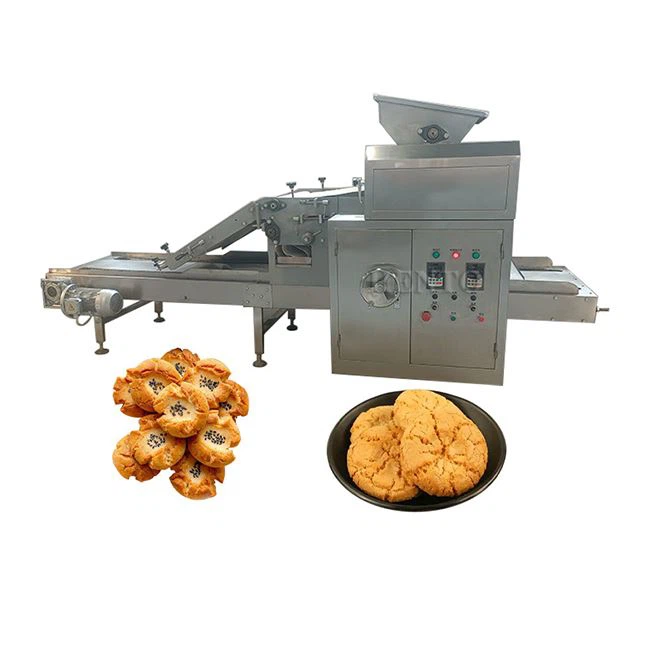

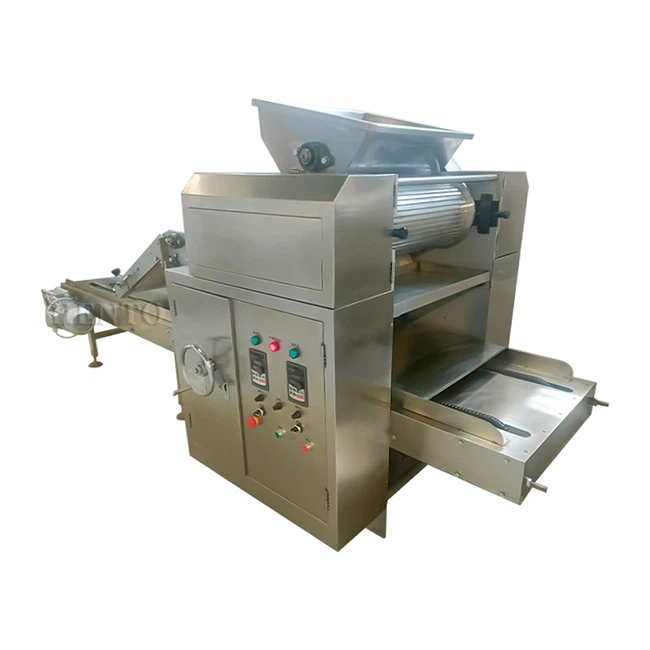

The walnut cookie machine is a specialized equipment for peach pastry production, designed in accordance with market demands and in combination with the manual production techniques of peach pastries.
The machine is used for roller printing of peach pastry cookies or cookies, and demolding and forming of crispy cookies. The peach pastry special machine rolls the dough that has been prepared by the flour mixer into various shapes and different grams of biscuits.
Company profile
The structure of the peach pastry special machine is simple, and the separation knife device has an adjusting device that can be adjusted to the appropriate position. The roller printing roller is specially designed to overcome the uneven wear of the separation blade, and the flower roller is taken out to a near vertical position for easy replacement. The peach pastry special machine is divided into disc type hot air rotary oven baking and tunnel furnace direct baking.
This machine can be used for tunnel-type steel (mesh) belt ovens, tunnel-type chain ovens, tunnel-type hand-pushed ovens, and hot air rotary ovens.
This walnut cookie machine is composed of two major parts: the mold forming system and the pallet chain conveying system. Both are driven by speed-regulating motors, and the production speed can be adjusted.
01
The forming system is equipped with feeding rollers, mold rollers and rubber rollers. The prepared fabric is put into the hopper.
02
Through the feeding and squeezing of the feeding rollers and mold rollers, it is formed into peach pastry bad material.
03
Then, the raw material is conveyed to the baking tray by the canvas belt pulled by the rubber rollers.
04
The tray chain is driven by a speed-regulating motor. The spacing of the peach pastry blanks on the flat tray can be determined according to production needs.
Contact now
comparison of product parameters
|
Model |
HT-BGJ400 |
HT-BGJ600 |
|
Capacity |
200kg/h |
300-600kg/h |
|
Main Sail Wiring Speed |
5m/min |
5m/min |
|
Voltage |
380V 50Hz |
380V 50Hz |
|
Power |
3kw |
4.5kw |
|
Speed Regulation Form |
Variable Frequency Speed Control |
|
|
Dimension |
2800*1100*1400mm |
3200*1300*1400mm |
|
Weight |
550kg |
750kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Customized as you want
This walnut cookie machine is also equipped with multiple adjustment mechanisms in its structure:
The canvas tensioning deviation adjustment mechanism;
Left and right as well as up and down adjustment mechanisms for the facet knife;
Canvas stain cleaning and scraping mechanism Feeding gap adjustment mechanism, etc.
FAQ
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about the package?
A: Usually we will use the standard export wooden case.
