Pig De-hairing Production Line

Pig De-hairing Production Line is very important for the meat industry, this line is manufactured to remove the hair and bristle from the pig's skin.

Send Inquiry

Product Introduction

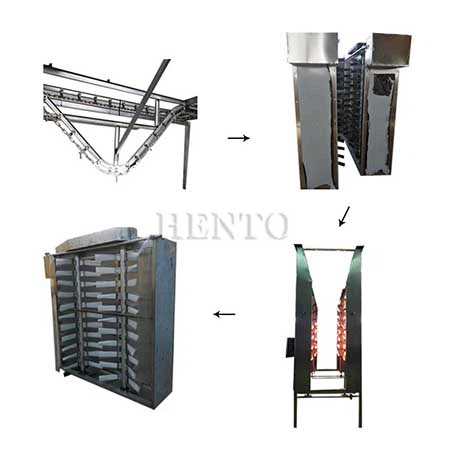

The Pig De-hairing Production Line mainly includes three machines: whole pig de-hair machine, pig conveyor and bristling machine.

01

One of the most important machines in the Pig De-hairing Production Line is pig de-hairing machine. It is an automatic machine and can put off hairs from pig skin after scalding. The machine adopts the rotating cylinder with multiple rubber strips, they are designed to rub against the pig skin when it moves through the machine. The friction between the rubber strips and the skin pulls out the hair and leaves the skin smooth and ready for further processing.

02

The bristling machine is another major component of the pig slaughtering process. After dehairing, this machine is used to remove bristles from the pigskin. The working principle is very jammy, it has a rotating cylinder covered with several rubber bristles, these are used to scrub the pigskin, loosen and remove any remaining bristles.

03

When the pigskin moves through the machine, the rotating cylinder applies gentle pressure on it, scrubbing off the bristles. Then the bristles are collected in a separate container, however the clean pigskin continues to the next stage of processing.

The pig conveyor is a vital component of the Pig De-hairing Production Line that moves pig carcasses from one step to another.

Contact now

How To Operate

(1).When dehairing, first scald the pig in the scalding pool. Using the correct water temperature (about 65-75 degrees Celsius) can achieve twice the result with half the effort.

(2).Turn on the hydraulic pressure and hair roller switch of the depilatory machine, then pull the lever to let the rake lift the pig and slide it into the depilatory machine cavity. The rotating depilatory roller will roll the pig along with the momentum. The three rollers will depilate the pig 360 degrees. In just a dozen seconds, you can pull the upper roller to let it rise, release the pig, and complete the depilation.

product parameters

Model	HT-LMJ01	HT-BSJ01	HT-XZJ01
Capacity	720-1200pigs/h	/	720-1200pigs/h
Power	3KW	3KW	3kw*0.75kw
Voltage	220v	220v	380V
Dimension	200012252000mm	210070003000mm	213019002730mm

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: What about Pre-sale service:

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
