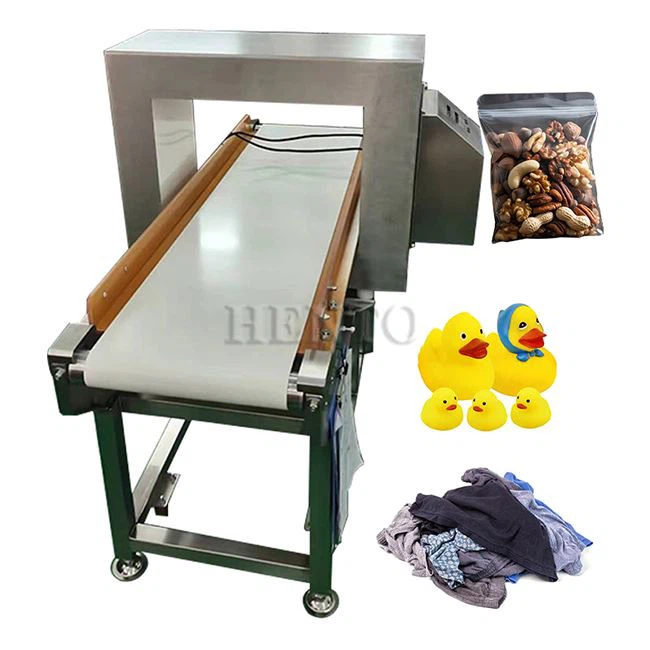

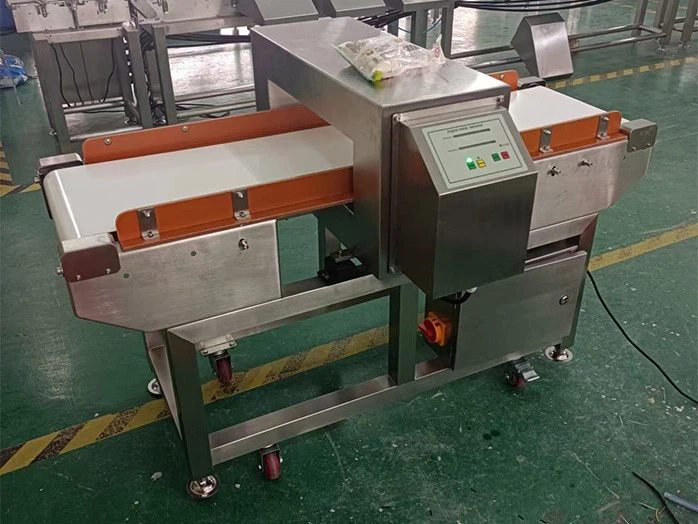

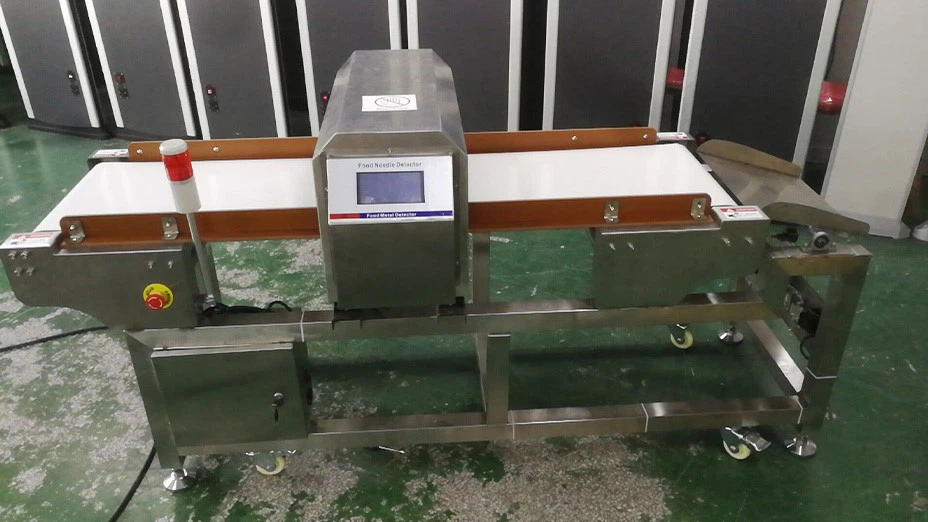

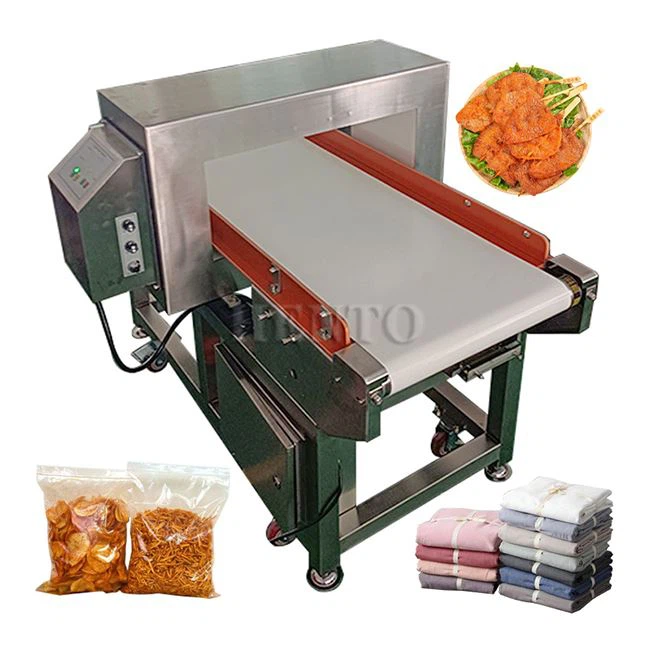

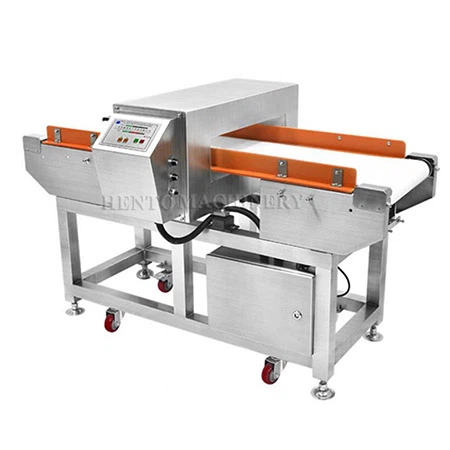

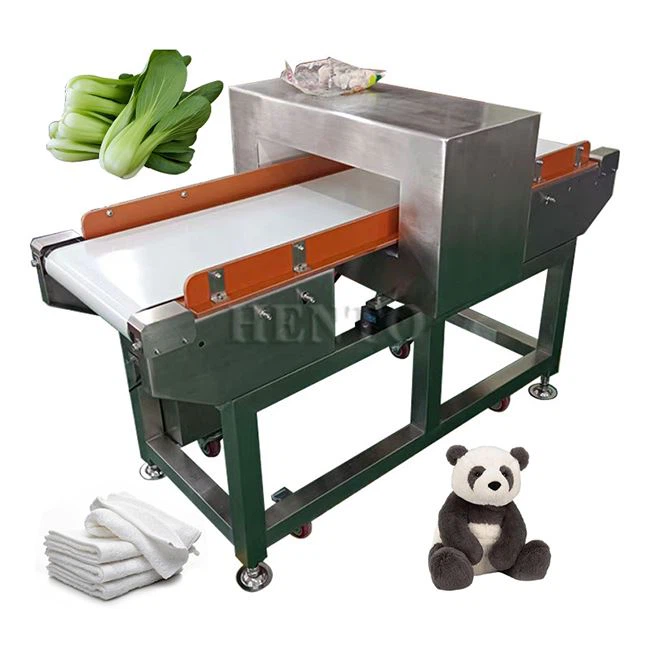

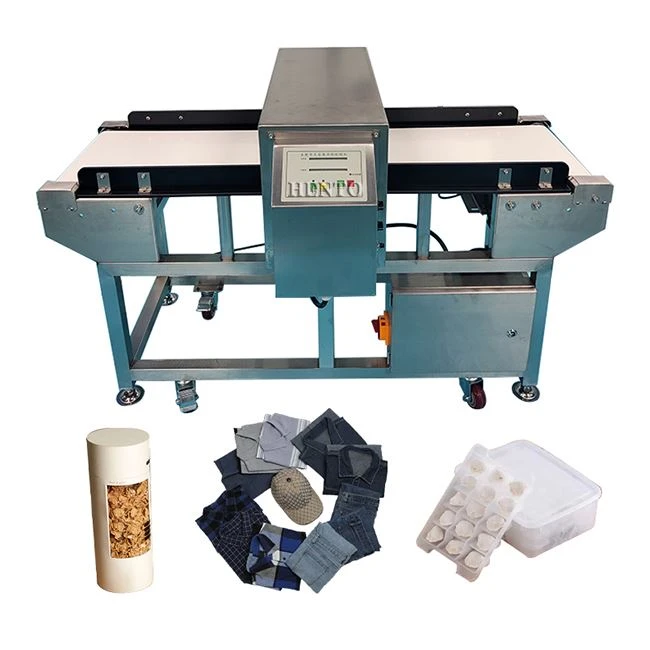

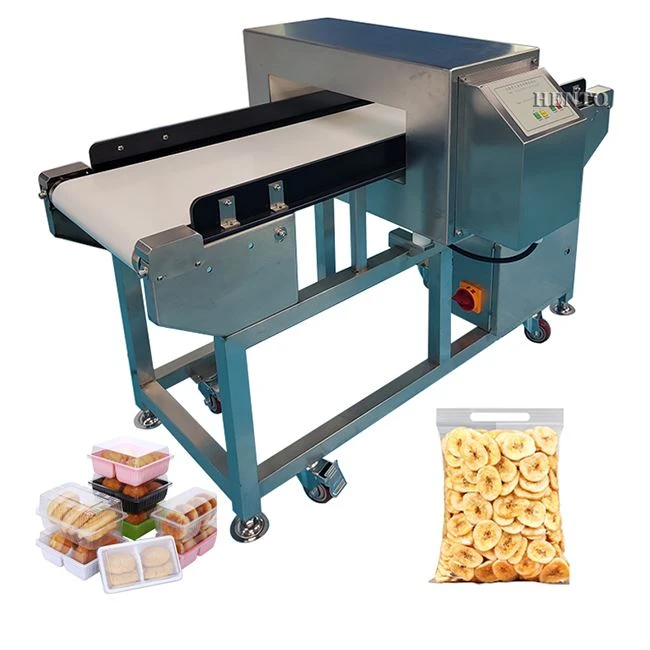

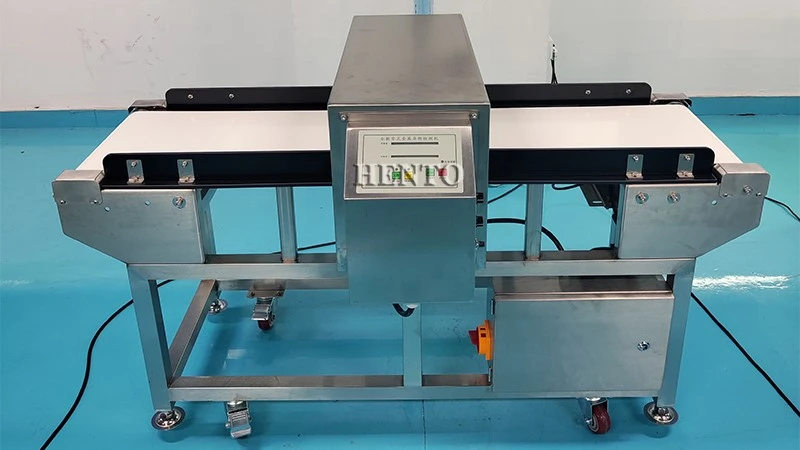

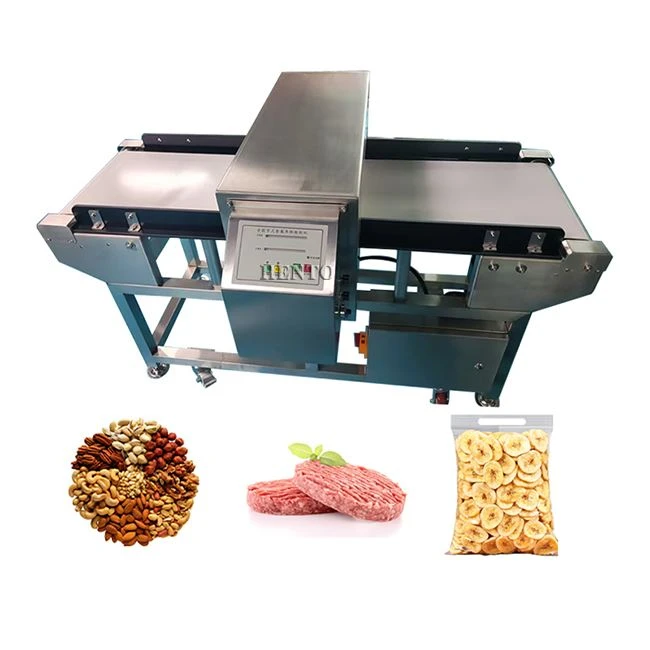

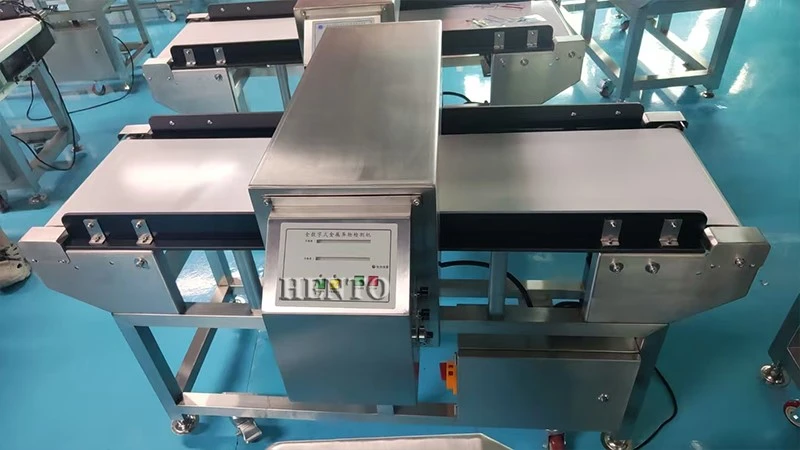

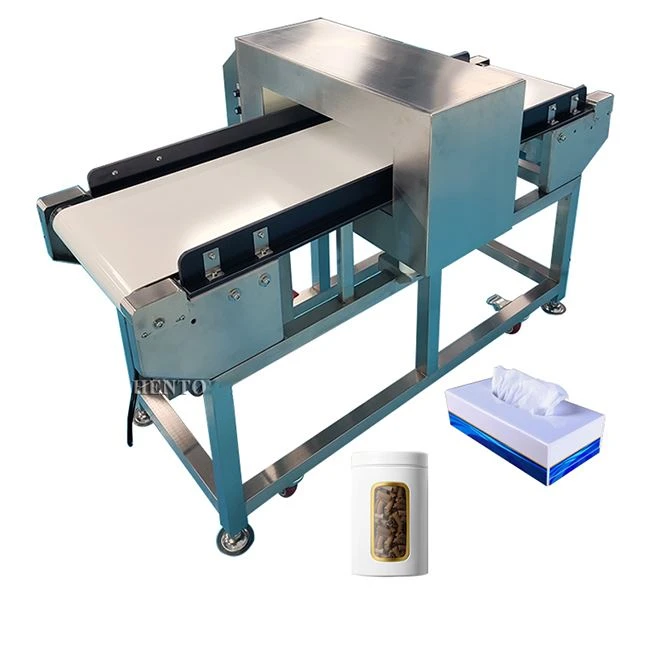

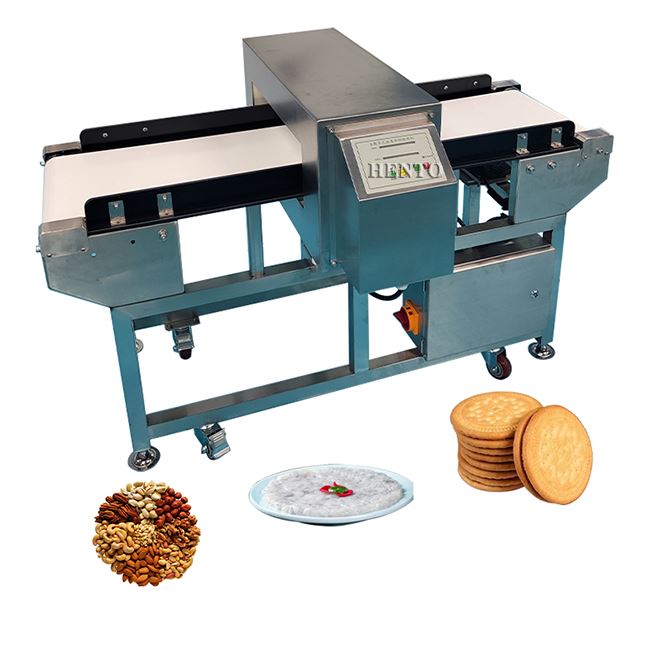

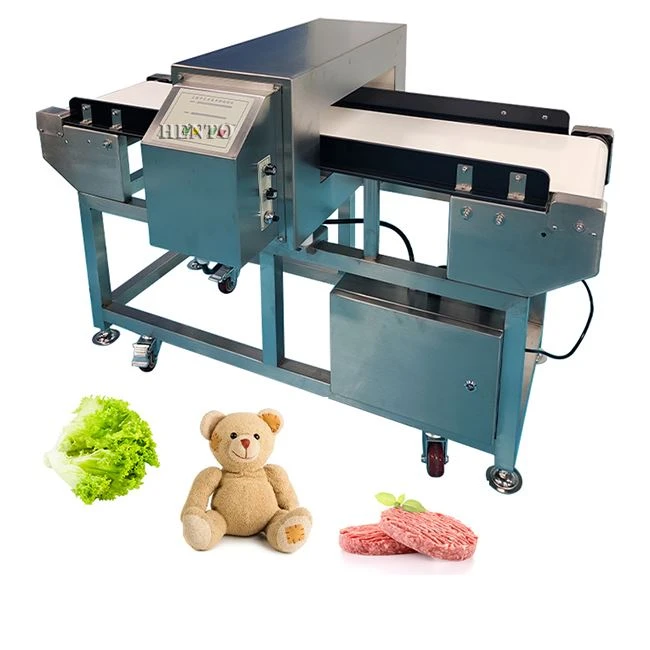

Food Metal Detector
2. Food Metal Detector replaces manual inspection and greatly improves productivity;
3. Intelligent recognition technology is adopted to automatically recognize and memorize product features, and then effectively eliminate interference.
Product Introduction
With the development of society, people are increasingly concerned about their own health status. Food contamination has become an urgent problem to be solved today, especially metal contamination, it poses even greater harm. As a result, the demand for food metal detection equipment continues to rise.
Many food processing enterprises have begun to introduce food metal detection instruments, which use electromagnetic induction technology to detect hazardous metals in food.
Specifically for food, iron metal in drugs, non-ferrous metals and alloy impurities detection. Detection of chemical raw materials, rubber products and paper products in a variety of metal debris.
Features of Food Metal Detector
The detection sensitivity of this machine is very high, and some tiny metals may be difficult to detect manually, but with its high sensitivity, the machine can achieve detection.
01
Different metal types require different detection frequencies, and this machine can set different detection frequencies.
02
Intelligent detection, automatic calibration, high accuracy.
03

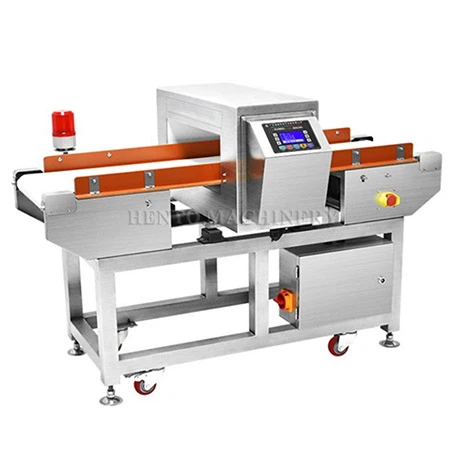

Utilize conveyor belts to detect during movement, saving manpower and time.
04
The body is made of stainless steel material, which is durable and easy to clean.
05
Advantages of Food Metal Detector
1, Food Metal Detector the use of foreign metal detection equipment in the more balanced principle, with a more stable and reliable, better performance
2, phase adjustment technology, to carry out product regulation, effective suppression of product effects
3, DSP and single-chip combination of the test signal for data sampling and data processing, improve the detection results
4, Food Metal Detector with a good man-machine dialogue interface
5, Can detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials, with self-learning function, to explore the expansion of the scope of the material
6, Food Metal Detector with a memory function, can store 20 kinds of product testing parameters
7, Food Metal Detector can easily carry out the sensitivity adjustment, the detection sensitivity can reach the index for the stainless steel SUS to Φ2.0mm, iron FE to Φ1.0mm (500mm * 120mm window)
8, In line with HACCP certification standards
comparison of product parameters
|
Model |
HT-TC808-4010 |
HT-TC808-4012 |
HT-TC808-4015 |
HT-TC808-4020 |
|
|
Detection channel width |
400mm(200-2000mm Customizable width) |
||||
|
Detection channel height (≥φmm) |
Standard machine inspection window height |
||||
|
100 |
120 |
150 |
200 |
||
|
sensitivity |
Iron Ball(Fe)(≥φmm) |
1.0 |
1.2 |
1.5 |
2.0 |
|
Copper and aluminum (but not iron)(≥φmm) |
1.5 |
2.0 |
2.5 |
3.0 |
|
|
Diameter of stainless steel(≥φmm) |
2.0 |
2.5 |
3.0 |
3.5 |
|
|
Machine Material |
The entire machine is made using the cold drawing process of stainless steel. |
||||
| Type of Alarm |
When an object is detected, the machine will automatically stop and emit a 12V buzzer alarm sound. |
||||
|
Machine Size |
1400*820*900mm (For customized products, please refer to the actual product dimensions) |
||||
|
Weight |
200kg |
||||
|
Voltage/Power |
220V 50Hz / 120w |
||||
|
Load capacity |
≤ 20kg Speed: 25 - 30m/min (not adjustable) |
||||
|
Work surface |
700mm high (customizable height available) |
||||
|
Model |
HT-TC808-4025 |
HT-TC808-4030 |
HT-TC808-4035 |
|
|
Detection channel width |
400mm(200-2000mm Customizable width) |
|||
|
Detection channel height (≥φmm) |
Customized non-standard detection window height |
|||
|
250 |
300 |
350 |
||
|
sensitivity |
Iron Ball(Fe)(≥φmm) |
2.5 |
3.0 |
3.5 |
|
Copper and aluminum (but not iron)(≥φmm) |
3.5 |
4.0 |
4.5 |
|
|
Diameter of stainless steel(≥φmm) |
4.0 |
4.5 |
5.0 |
|
