Cement Foaming Machine

1.Our cement foaming machine adopts full line frequency conversion intelligent electronic control system, new hose pump frequency modulation pumping technology, more convenient operation.
2.Suitable for floor heating, floor, roof and many other aspects of foamed cement project.
Send Inquiry
Product Introduction

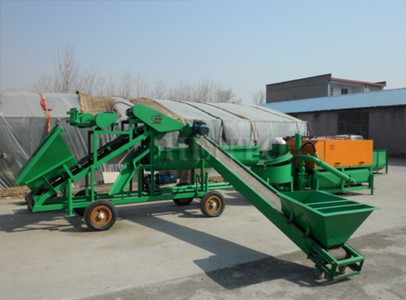

Concrete Foam Machinery


Product Introduction



The construction operation of our Cement Foaming Machine has reached automation, from feeding, adding water, bubble making, mixing foaming and conveying into one, with simple operation, stable performance and good foaming effect.

The quality of light foamed Cement produced by our machine is guaranteed, the density can be arbitrarily adjusted between 260-1600kg/ kg according to user requirements, the strength can reach 0.6-3.5Mpa, the construction surface can reach the natural level, and various ground materials can be directly bonded after solidification.




product parameters

Model

HT-KT20

Delivery method

Screw pump delivery

Voltage

380V

Capacity

5-8m3/h

Horizontal transport distance

100m

Vertical transport distance

20m

Host machine

Main pump power

2.2kw

Water pump power

0.75kw

Pharmacy pump power

1.5kw

Air compressor power

2.2kw

Dimension

1200*950*1150mm

Feeding machine

Power

1.5kw

Rotating speed

68 r / min

Dimension

2600*850*1000mm

Mix machine

Capacity

0.8m³

Power

2.2kw

Rotating speed

60 r / min

Dimension

1950*820*1250mm

Contact now

    Applications:

  • The Cement Foaming Machine can also be used for floor heating construction, but also can give full play to the performance of the equipment, the production of a large number of cement foam, sound insulation products, such as various specifications of cement foam board, cement foam brick, building floor, roof. The foam material used on the roof can play the role of heat preservation and heat insulation. The heat preservation and heat insulation effect is 20-30 times that of ordinary materials.

  • The roof irrigated with foamed cement also has a good anti-seepage effect, and has a strong waterproof effect after adding the appropriate amount of additives, which can replace other waterproof materials to solve the problem of roof leakage for a long time.

  • It is an efficient thermal insulation, thermal insulation and waterproof material with low cost and simple process. It can be used for insulation, moisture-proof and anti-corrosion of wall, water pipeline, heating pipeline, oil pipeline and other pipelines.

  • Cement Foaming Machine can also be used for anti-freezing and anti-corrosion of tap water and sewer pipes, effectively extending the life of pipelines. At the same time, this is suitable for filling the gap inside the tunnel mine, low temperature cold storage and cold air storage.

Foam Concrete Block Making Machine

FAQ

Q: 1.What's the MOQ?

A: 1 set.

Q: 2. Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service?

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
