Concrete Foam Machine
2.The foaming agent itself can not automatically become foam, it must be through the mechanical action of the foaming machine to become foam.
Product Introduction

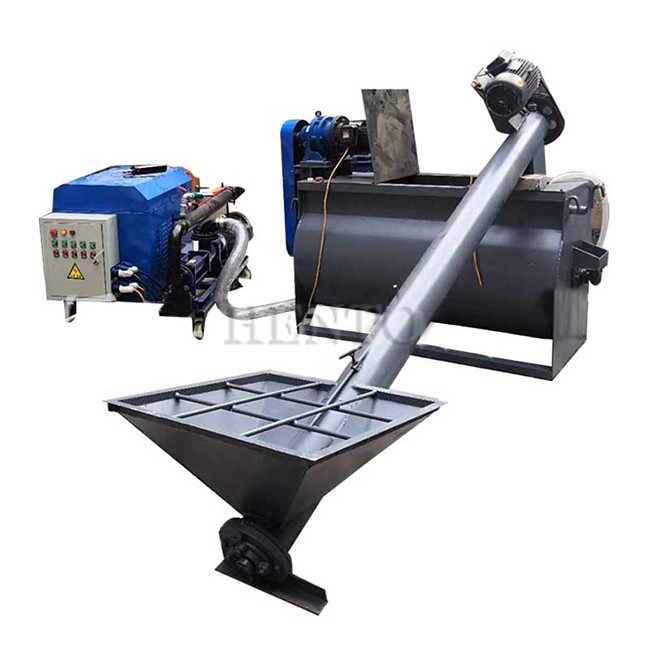

The working mode of Concrete Foam Machine is to mix water and foaming agent into foaming liquid in proportion, and then the pneumatic part of the foaming machine makes foam and outputs it to the mixer. At the same time, the water and cement are input to the mixer in proportion to stir into slurry and send it to the mixer. Foamed cement is formed with foam using the blade structure of the mixer and pushed to the construction pouring position by a screw pump.
product parameters
|
Model |
HT-KT20 |
|
|
Delivery method |
Screw pump delivery |
|
|
Voltage |
380V |
|
|
Capacity |
5-8m3/h |
|
|
Horizontal transport distance |
100m |
|
|
Vertical transport distance |
20m |
|
|
Host machine |
Main pump power |
2.2kw |
|
Water pump power |
0.75kw |
|
|
Pharmacy pump power |
1.5kw |
|
|
Air compressor power |
2.2kw |
|
|
Dimension |
1200*950*1150mm |
|
|
Feeding machine |
Power |
1.5kw |
|
Rotating speed |
68 r / min |
|
|
Dimension |
2600*850*1000mm |
|
|
Mix machine |
Capacity |
0.8m³ |
|
Power |
2.2kw |
|
|
Rotating speed |
60 r / min |
|
|
Dimension |
1950*820*1250mm |
|
competitive advantage
Portable Concrete Foam Machine performance characteristics
integrated
Concrete Foam Machine integrates all functions of liquid supply, feeding, foaming and mixing into one and miniaturized, which is the only ultra-portable integrated foaming machine in China.
Small size
Small size, weight in 300kg, six people can easily move on-site, easy to operate and use, low failure rate, light weight, can be equipped with manual forklift loading and unloading, saving time, labor and cost.
High-pressure
The foaming mechanism is the most advanced high-pressure air foaming technology, using air jet secondary foaming principle, simple structure, compact, is the smallest efficient foaming device.
mixing system
Its own mixing system for the bedroom mixer, stepless adjustable speed; Patented three-stage stirring blade, strong eddy current stirring, keep the best state of the product, can set the volume weight of different products to meet the requirements of various products.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
