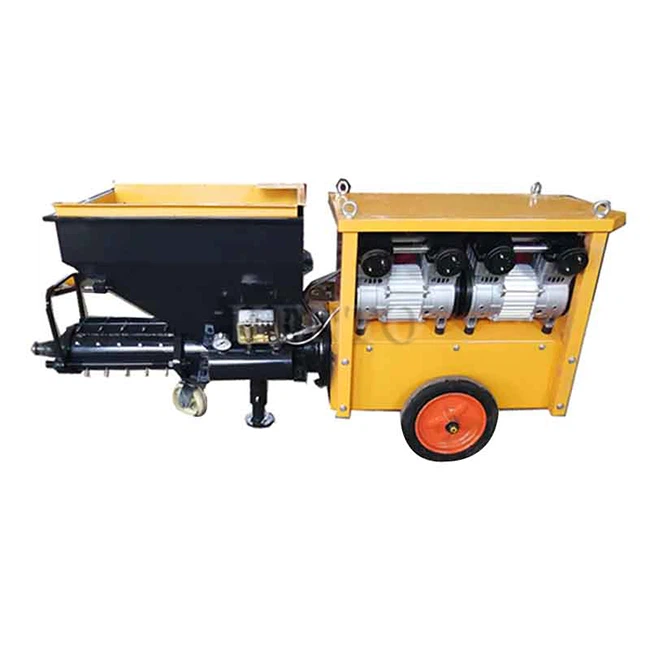

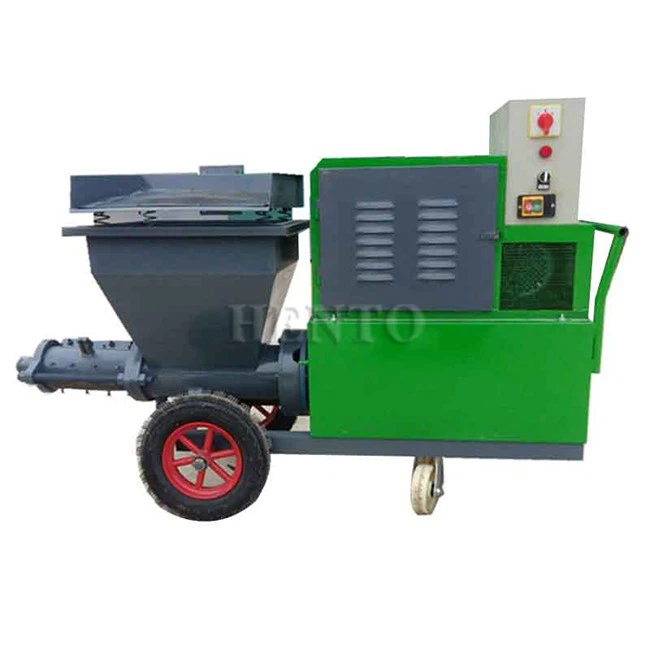

Mortar Cement Sprayer
2.It can spray mortar, waterproof coating, and refractory materials, and isn't affected by regional and environmental conditions and the shape of the spray surface.
Product Introduction
Mortar Cement Sprayer is suitable for: indoor and outdoor ceiling spraying, expansion joint leakage, settlement joint leakage, subway leakage, tunnel leakage, mine leakage plugging, civil air defense leakage plugging projects, dam leakage plugging, floor, crack, and hollow drum reinforcement Reinforcement, cement mortar spraying, dry mortar spraying, waterproof grouting and waterproof surface spraying, waterproof spraying, grouting, ceiling spraying, wall spraying, paint spraying, garden spraying, relief effect paint spraying, handicraft spraying, latex paint, real stone paint, rockery It can be sprayed, sculptures can be sprayed, and sound-absorbing materials can be sprayed.

product parameters
|
Model |
HT-BG450 |
HT-BG550 |
|
Maximum particle size |
4mm |
7mm |
|
Voltage |
220v/380v |
380v |
|
Power |
4kw |
7.5kw |
|
Dimension |
1600*450*950mm |
1700*600*1100mm |
|
Weight |
150kg |
300kg |
|
Pump power |
2.2kw |
2.2kw |
|
Delivery pipe |
25# |
38# |
|
Working pressure |
3-6Mpa |
5-8Mpa |
|
Transport flow rate |
2m³/h |
3m³/h |
|
Model |
HT-CY18HP |
|
Vertical conveying distance |
20m |
|
Horizontal conveying distance |
30m |
|
Voltage |
220v/380v |
|
Diesel engine power |
12HP/18HP |
|
Dimension |
1300*450*750mm |
|
Weight |
180kg |
|
Maximum mortar ratio |
1:3 |
|
Hopper volume |
80L |
|
Capacity |
150m²/h |
|
Conveying volume |
2m³ |
|
Pipe inner diameter |
32/38mm |
|
Working pressure |
3-6Mpa |
|
Maximum granules |
5mm |
|
Accessories |
10 -meter material pipe, 10 meters of trachea, 1 spray gun and 5 nozzles |
|
Model |
HT-RS311 |
|
Motor power |
4kw |
|
Air compressor |
3kw/2.2kw |
|
Voltage |
220v/380v |
|
Diesel engine power |
12HP/18HP |
|
Dimension |
1750*450*800mm |
|
Weight |
160kg |
|
Vertical conveying distance |
20m |
|
Horizontal conveying distance |
30m |
|
Conveying granules |
<4mm |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Advantages of Mortar Cement Sprayer
1. There is basically no dust on the floor, saving water and materials, which can reduce costs by more than 20%.
2. The operation is simple, no need to build scaffolding, no need to move equipment, no need to repair overlapping joints, the external corners and roof can be sprayed freely, which improves the work progress during the entire construction period and saves the expenditure on frame materials.
3. Fast speed, high efficiency and low labor intensity. A high-precision spraying machine can easily spray 150 square meters, saving preparation time. It works 8 times a day and can spray more than 1,000 square meters, which is equivalent to 20 skilled workers working hard for a day. workload.
4. The quality of the project is guaranteed. The main shortcomings of manual wall painting and wall painting machines are the stability of the mortar and wall and the density of the mortar. Cement Mortar Sparying Machine has large flow rate, high pressure, and the density of the mortar far exceeds the national standards, which avoids the problem. Trouble and losses caused by quality, construction period, labor price and other issues.
5. Mortar Cement Sprayer has multiple uses. It can spray mortar, flame materials and refractory materials. It is not affected by regional and environmental conditions and the shape of the spray surface.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
