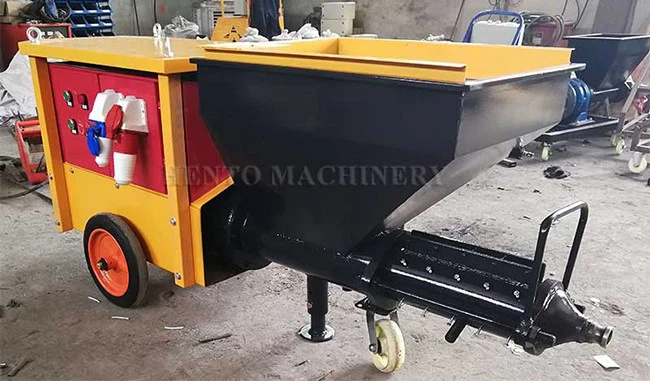

Cement Stucco Sprayer
This machine has completely changed the construction work is completed, making it faster, more efficient, and the work intensity is lower.
Applicable spraying range of Cement Stucco Sprayer
One of the benefits of using Cement Stucco Sprayer is the speed of application. The Cement Stucco Sprayer can cover a large surface area in a short amount of time, reducing the overall construction time. This is particularly useful for large construction projects where time is a critical factor.
Internal and external walls of buildings, ceilings and roofs, wall steel mesh reinforcement (school building reinforcement), wall roughening starting points, high-speed river embankment protection, tunnels, subways, garden rockeries, brick templates, steel structure protective layers, etc.
In the construction industry, exterior wall mortar spraying, exterior wall insulation material spraying, mortar roughening, refractory material spraying, large-area fireproof material spraying for buildings, and waterproofing agent spraying slurry projects.
product parameters
|
Model |
HT-JP50 |
HT-JP100 |
|
Hopper Volume |
50L |
100L |
|
Voltage |
220v 60hz 1phase |
220v 60hz 1phase |
|
Power |
4kw |
4kw |
|
Maximum grain size |
4mm |
4mm |
|
Output |
3 m3/h |
3 m3/h |
|
Suitable air compressor |
0.3-0.6m3 |
0.3-0.6m3 |
|
Max pressure |
3mpa |
3mpa |
|
Sparying distance |
20m |
20m |
|
Max sparying height |
20m |
20m |
|
Dimension |
1.9*0.6*1.5m |
2*1*1.7m |
|
Weight |
280kg |
330kg |
|
Model |
HT-311 |
HT-511 |
|
Voltage |
220v |
220v |
|
Power |
4kw single phase |
7.5kw single phase |
|
Maximum grain size |
5mm |
7mm |
|
Pipe diameter |
32cm |
38mm |
|
Pipe Length |
10m Standard |
10m Standard |
|
Size |
1.3*0.45*0.75m |
1.7*0.6*1.1m |
|
Weight |
180kg |
280kg |
|
Maximum conveying distance |
Horizontal: 20m Vertical: 10m |
Horizontal: 30m Vertical: 20m |
The advantages of Cement Stucco Sprayer are
01.
The mortar spraying machine is suitable for spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry powder mortar,Water-soluble materials such as thermal insulation mortar, waterproof materials, fireproof materials, heat insulation materials, sound-absorbing materials, etc.
02.
Adjust the flow rate to achieve the spraying effect.
03.
Small size, easy to carry on site, low cost of accessories and simple maintenance.
04.
It is easy to use, saves materials, labor, and saves money. One machine only needs three people.
05.
200 square meters/hour (thickness 2cm). Excluding preparation time and working 8 hours a day, more than 1,000 square meters can be sprayed, which is equivalent to the workload of 20 skilled workers.
06.
Material ratio (cement) 0.7:3 mortar.
FAQ
Q: 1.What's the MOQ:
Q: 2.How can we pay?
Q: 3.How to ship?
Q: 4.Which port do you send the goods from?
Q: 5. What is the warranty of your machine?
Q: 6.How to buy this machine?
Q: 7.What about the package?
Q: 8.Do you need a supplier to provide transportation?
Q: 9.What's your voltage?
Q: 10.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 11.What's your After-sales service?
Online support ;
Field installation, commissioning and training;
