High pressure homogenizing machine are mainly used in the biological, pharmaceutical, food, chemical and other industries for cell disruption, beverage homogenization, fine chemicals, preparation of liposomes, fat emulsions, nanosuspensions, microemulsions, lipid microspheres, emulsions, dairy products, large infusions, dyes, solar panel coatings, conductive coatings and other products.

Send Inquiry

Product Introduction

Application for high pressure homogenizing machine

High-pressure homogenizer is one of the most effective production equipment for preparing nanomaterials using nanotechnology. It has a wide range of applications and has a global market demand of nearly 10 billion RMB.

Preparation of fat particles, microemulsions, liposomes, suspensions and microcapsules in the pharmaceutical industry;

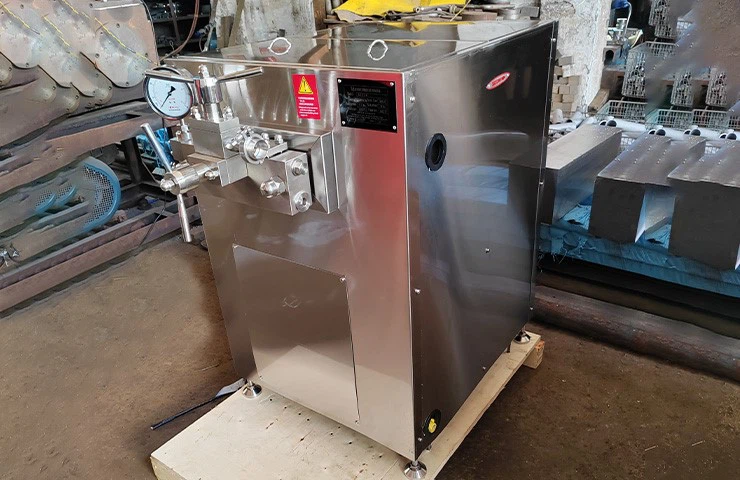

homogenizer for milk industry

Cell disruption, extraction and homogenization of intracellular and extracellular substances in bioengineering products;

Homogenization and emulsification of food and beverage industry products to improve product stability;

Homogenization and dispersion of products in the cosmetics, fine chemicals and other industries;

Production and preparation of conductive slurries and resistor slurries.

Get A Quote Now

Working Principle of high pressure homogenizing machine

The high-pressure homogenizer is mainly composed of a high-pressure homogenizing chamber and a booster mechanism. The interior of the high-pressure homogenizing chamber has a specially designed geometric shape.

Under the action of the booster mechanism, the high-pressure solution passes through the homogenizing chamber quickly, and the material will be simultaneously subjected to mechanical forces such as high-speed shearing, high-frequency oscillation.

The mechanical forces and chemical effects caused by this can induce changes in the physical, chemical and structural properties of the material macromolecules, and ultimately achieve a homogenizing effect.

Therefore, the high-pressure homogenizing chamber is the core component of the equipment, and its unique internal geometric structure is the main factor that determines the homogenizing effect.

The booster mechanism provides the required pressure for the fluid material to pass through the homogenizing chamber at high speed, and the level and stability of the pressure will also affect the quality of the product to a certain extent.

Get A Quote Now

Product parameters

Model	HT-JR0.1/25	HT-JR0.2/25	HT-JR0.3/25	HT-JR0.5/25
Flow rate	100L/H	200L/H	300L/H	500L/H
Maximum pressure	25Mpa	25Mpa	25Mpa	25Mpa
Working pressure	0-20Mpa	0-20Mpa	0-20Mpa	0-20Mpa
Voltage	380v	380v	380v	380v
Motor power	1.5kw	1.5kw	3kw	4kw
Size	750520930mm	755520935mm	760520935mm	1010616975mm

Product parameters

Model	HT-JR1/25	HT-JR1.5/25	HT-JR2/25	HT-JR3/25
Flow rate	1000L/H	1500L/H	2000L/H	3000L/H
Maximum pressure	25Mpa	25Mpa	25Mpa	25Mpa
Working pressure	0-20Mpa	0-20Mpa	0-20Mpa	0-20Mpa
Voltage	380v	380v	380v	380v
Motor power	7.5kw	11kw	15KW	22KW
Size(mm)	1100676975mm	11007701100mm	14108501190mm	14109601280mm

Get A Quote Now

Maximum homogenization pressure for high pressure homogenizing machine

In general, the higher the homogenization pressure, the better. First, the higher the homogenization pressure, the smaller and more uniform the particle size of the homogenized material will be. This makes the equipment more efficient and can achieve the desired effect with fewer cycles; second, the higher the homogenization pressure, the more types of materials can be processed.

small scale milk homogenizer

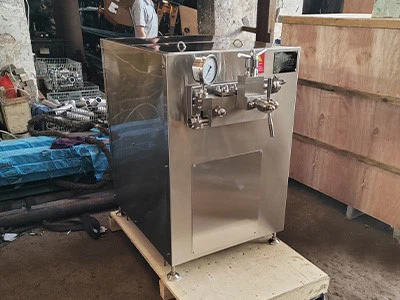

High Pressure Homogenizing Machine

For example, some liquid emulsions can be homogenized to less than 100nm at only 20,000psi, while some suspensions containing higher-density solid particles can only be processed to the nanometer level at a pressure of at least 26,000psi.

But at the same time, it should be noted that the higher the homogenization pressure, the greater the heat generation, and high temperature will affect the homogenization effect of the material. Therefore, generally, in the absence of cooling measures, 30,000psi is the maximum pressure for ultra-high pressure homogenization.

FAQ

Q: What's the MOQ?

A: 1 set

Q: Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: How long is the warranty of the machine?

A: Two years warranty.

Q: How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: What about the package?

A: Usually we will use the standard export wooden case.

Q: Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.
